Page 50 Operation – Elements and procedures Group 6
Release R1.12 en JET2 neo
6. Operation
6.1 Construction/Structure of the device
The high-performance LEIBINGER JET2neo is manufactured of a solid two parts stainless
steel cabinet. Due to the two parts construction you will get a thermal separation between the
hydraulic- and electronic section. The device consists of the following main components.

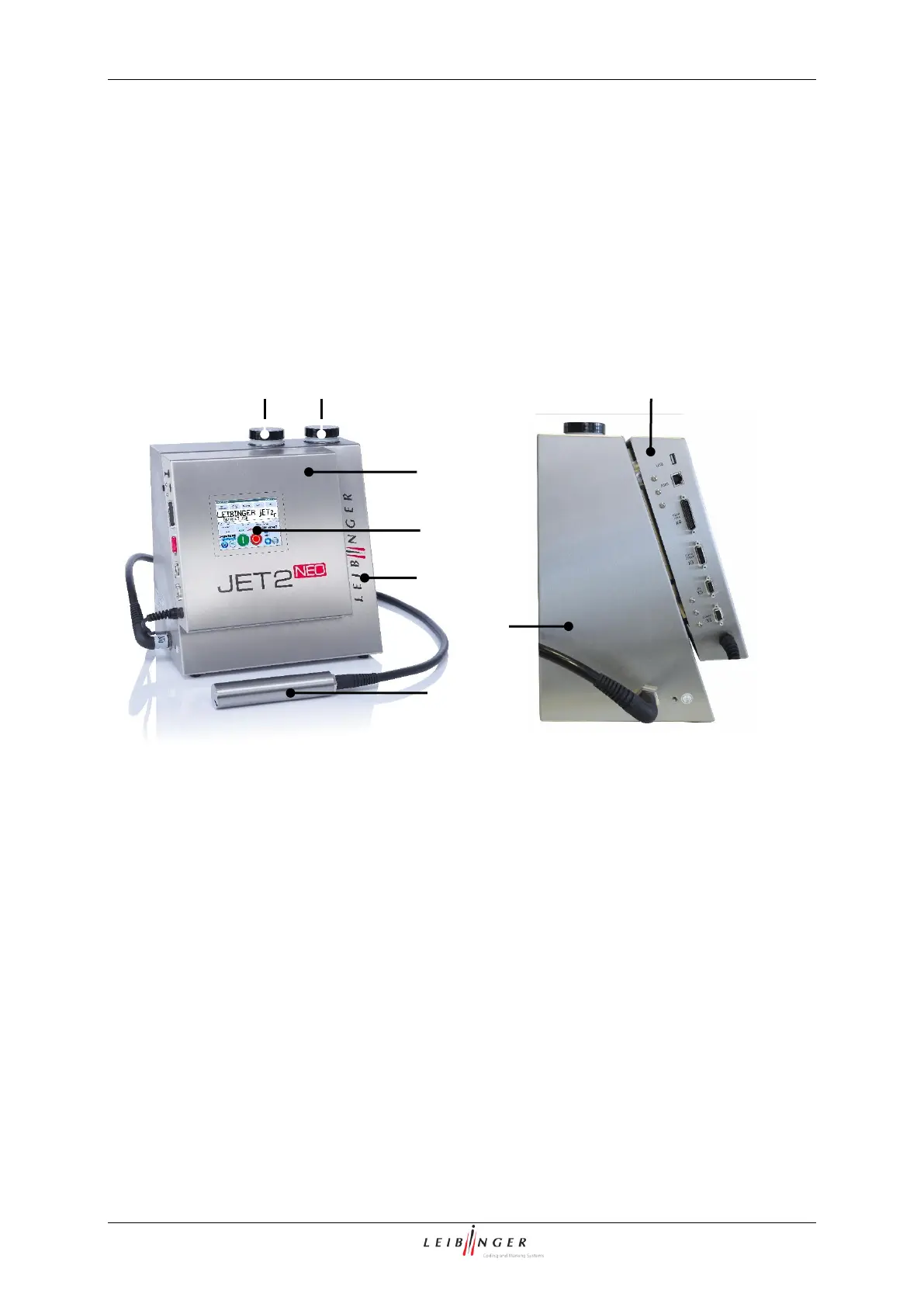

Figure 12
Equipment configuration (General view)
1 – Electronic cabinet
4 – Reservoir tank „Solvent“
2 – TFT – Touch Display
5 – Reservoir tank „Ink“
3 – Hydraulic cabinet
6 – Print head with umbilical
In the closed electronic cabinet you will find the essential electronic components as power
supply, the TFT-Touch Display as well as the controller board.
The central arranged TFT-Touch Display describes the interactive interface for the operator.
This central entry medium with its 5.7” color display with backlight allows clear, self-explaining
operator guidance without additional keys and switches.
In the hydraulic cabinet you find all components which are required for the transportation and
preparation of ink as well as the two reservoir tanks for ink and solvent. The unpressurized
tanks can be refilled without interrupt procedure, odorless and splash-free during the operation.
1
3
6
4
1
3
2
5
