Page 254 Job editor Group 8
Release R1.12 en JET2 neo

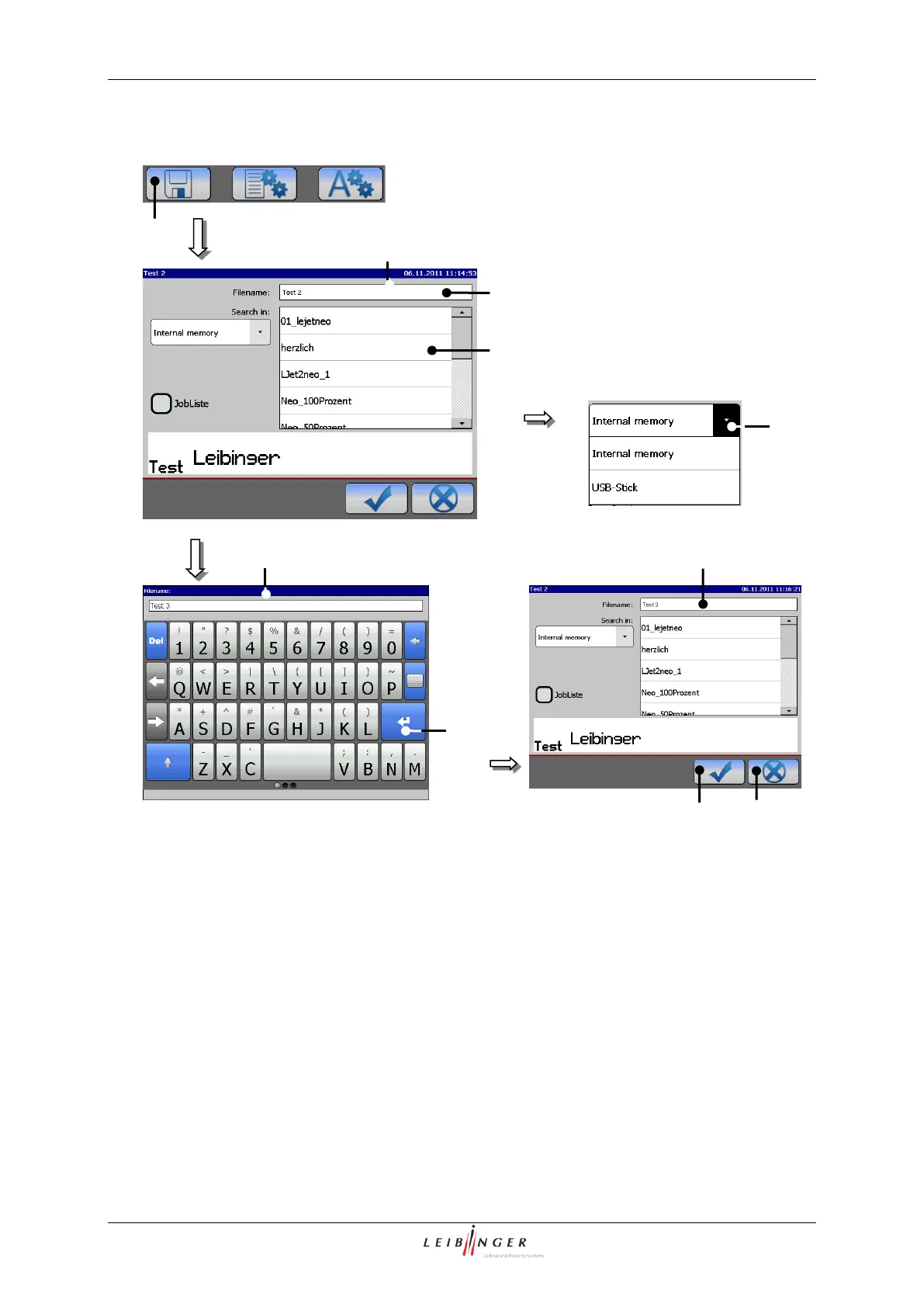

Figure 150
Job editor (Save job)
1 – Button <Save>
6 – Keyboard field
2 – Window <Save Job>
7 – Button <Return >
3 – Selection field <Data file>
8 – Button <OK ()>
4 – Pop-up window <Search in>
9 – Button <Close>
5 – Display <Filename>
1
2
9
5
8
6
7
3
5
4
