Leibinger JET2neo - Figure 143 - Print Elements (Shift Code Input)

Page 234 Job editor Group 8
Release R1.12 en JET2 neo

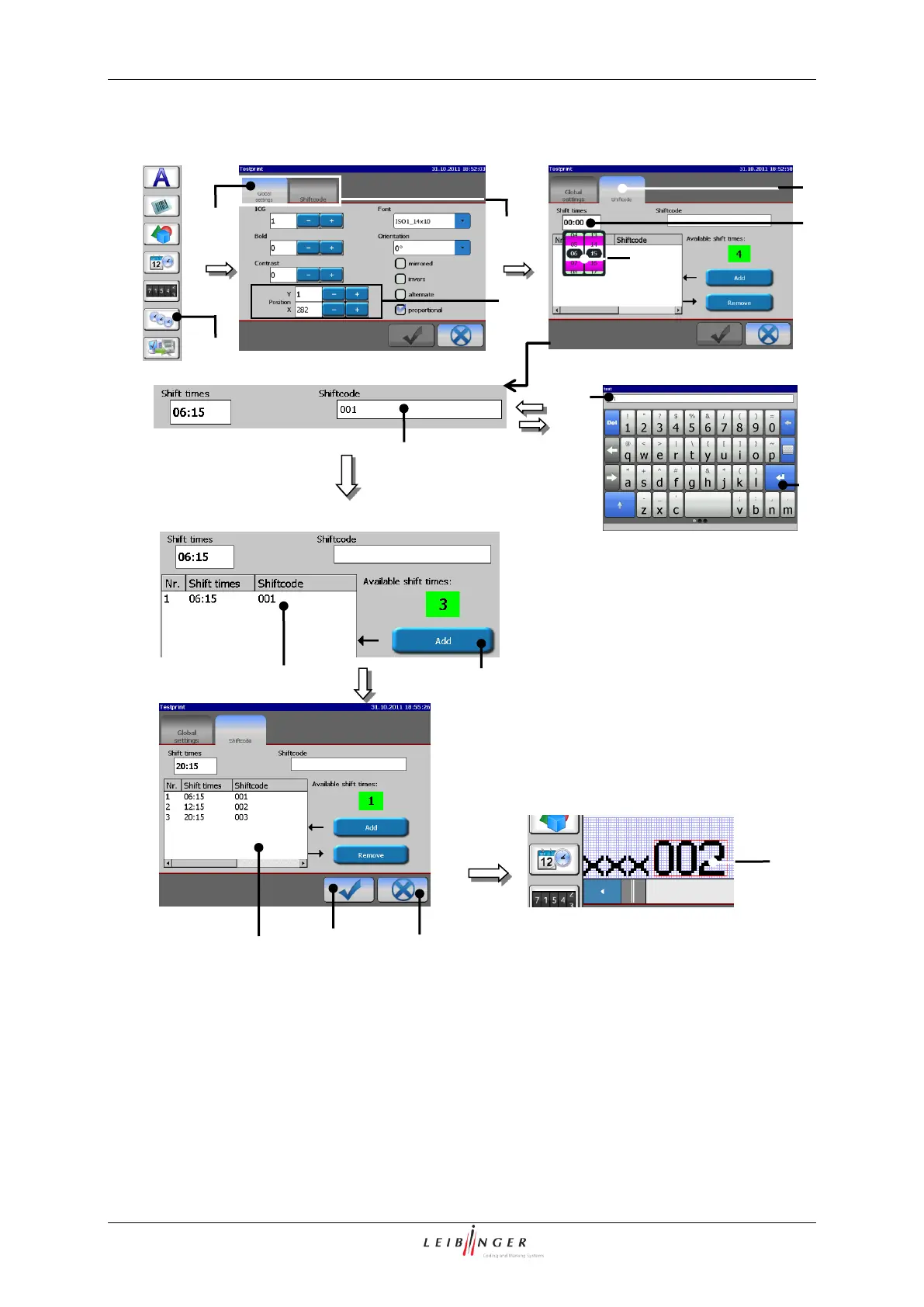

Figure 143
Print elements (Shift code input)
Example view: Display shift 2
(late shift)
1 – Direct button <Shift code>
9 – Keyboard field
2 – Menu <Object settings (Shift code)>
10 – Button <Return >
3 – Functional area <Globl settings>
11 – Button <Add>
4 – Setting fields <Position X/Y>
12 – Management window
5 – Functional area<Shiftcode>
13 – Button<OK ()>
6 – Display field <Shift times>
14 – Button <Close>
7 – setting block
15 – Display in menu <Job editor>
8 – Display field <Shiftcode>
16 – Register cards
