Group 5 Transport/Start up Page 35
JET2 neo Release R1.12 en

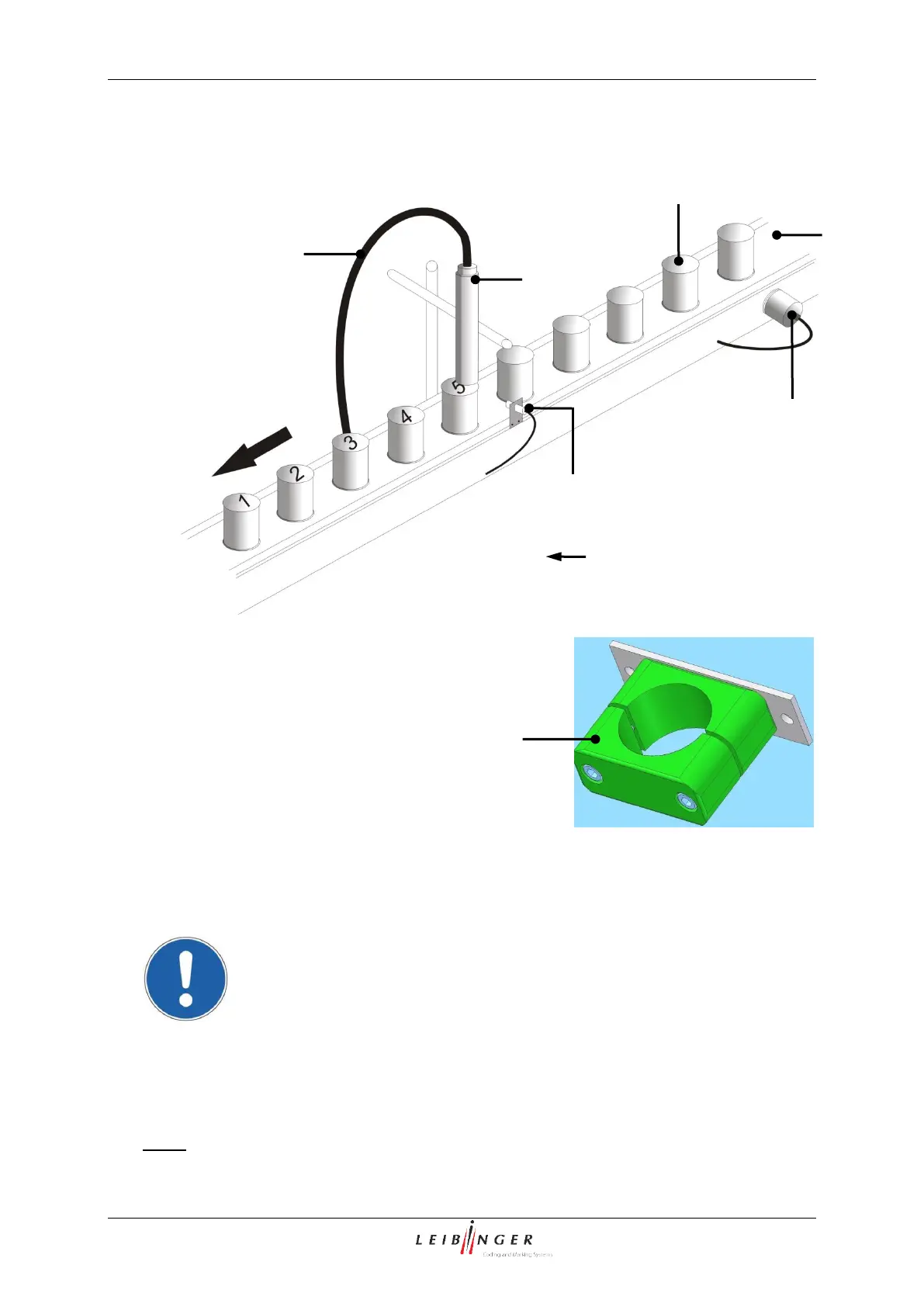

Figure 7
Print head installation (Example)
1 – Product
4 – Sensor
6 – Umbilical (Hose connection)
2 – Conveyor belt
5 – Print head
7 – Print head adapter
3 – Encoder
(accessories)
The print head should be attached vibration-free. The hose connection of
the print head should not be smaller as a radius of R60 statistically and
dynamically not below R100!
The distance of the print head to the product depends on the required character height.
As smaller the required character height, as smaller the distance of the print head to the
product (smaller distances produce better type quality)
Note: In general a distance of round about 8-10 mm is recommended.
1
3
5
4
2
= Conveying direction
6
7
