8.5.3 Encoder parameter
The LEIBINGER JET2neo composes the printed lines of single dots and therefore it
requires a signal encoder (encoder) which transfers when the single dot lines (so called
strokes) should be printed

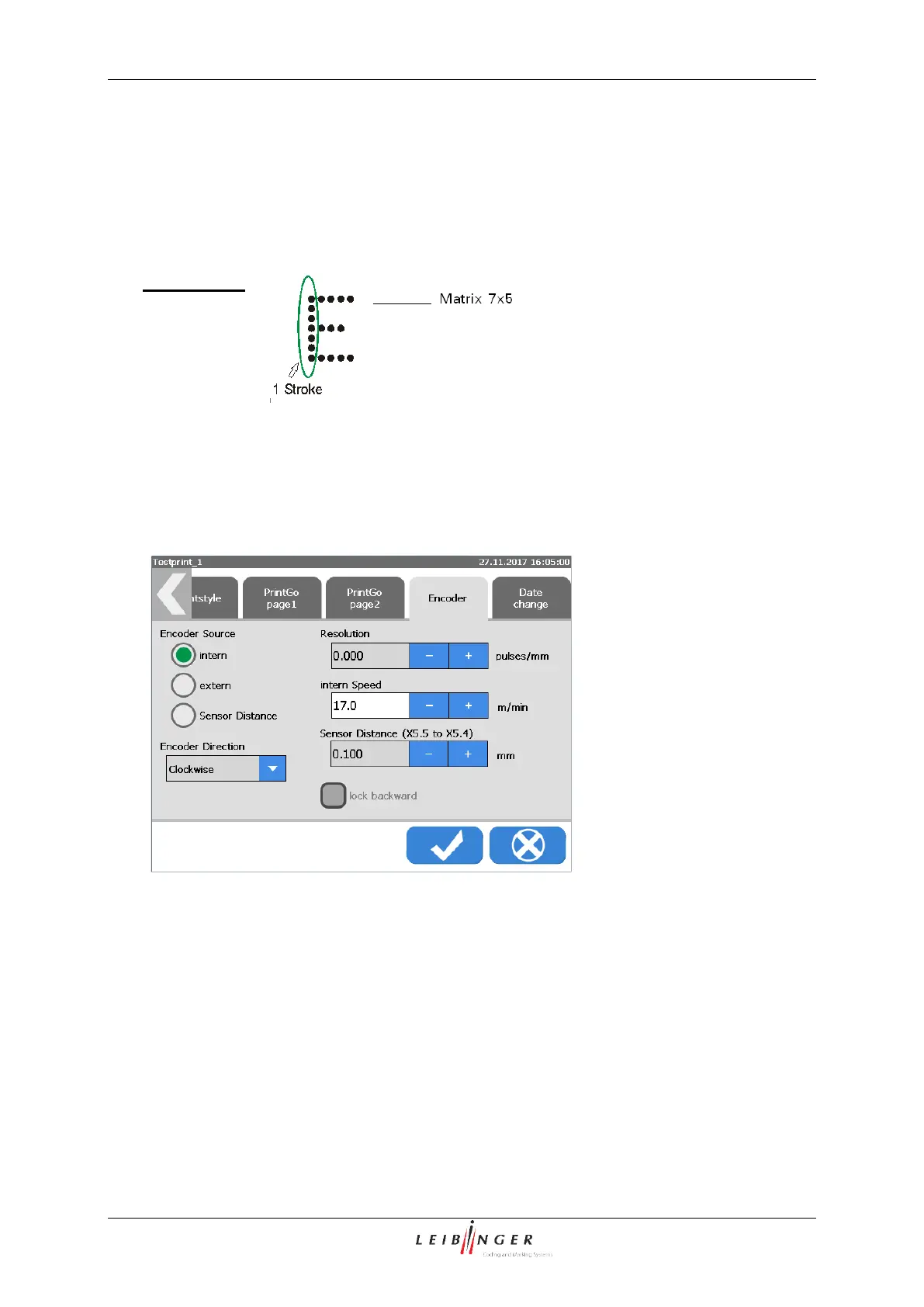

Explanation:
A stroke is a complete dot line in
vertical direction (dot height).
This encoder is also called StrokeGo-source. The required signal can be generated
internally as well as externally.
In the functional area <Encoder> you can carry out the basic settings of the signal
encoder.
The following settings can be carried out depending on the encoder signal source:
 Selection of encoder signal source
 Resolution
 Rotating direction
 Internal speed
 Lock backward on/off
 Sensor Distance X5.5 to X5.4
Example:
