Leibinger JET2neo - Carry out Fill up Routine; Figure 9 - Filling Routine (Step 1)

Page 40 Transport/Start up Group 5
Release R1.12 en JET2 neo
5.4.3 Carry out fill up routine
(Step 3)
After filling the consumables (ink and solvent) you have to carry out the fill up routine.
Proceeding:

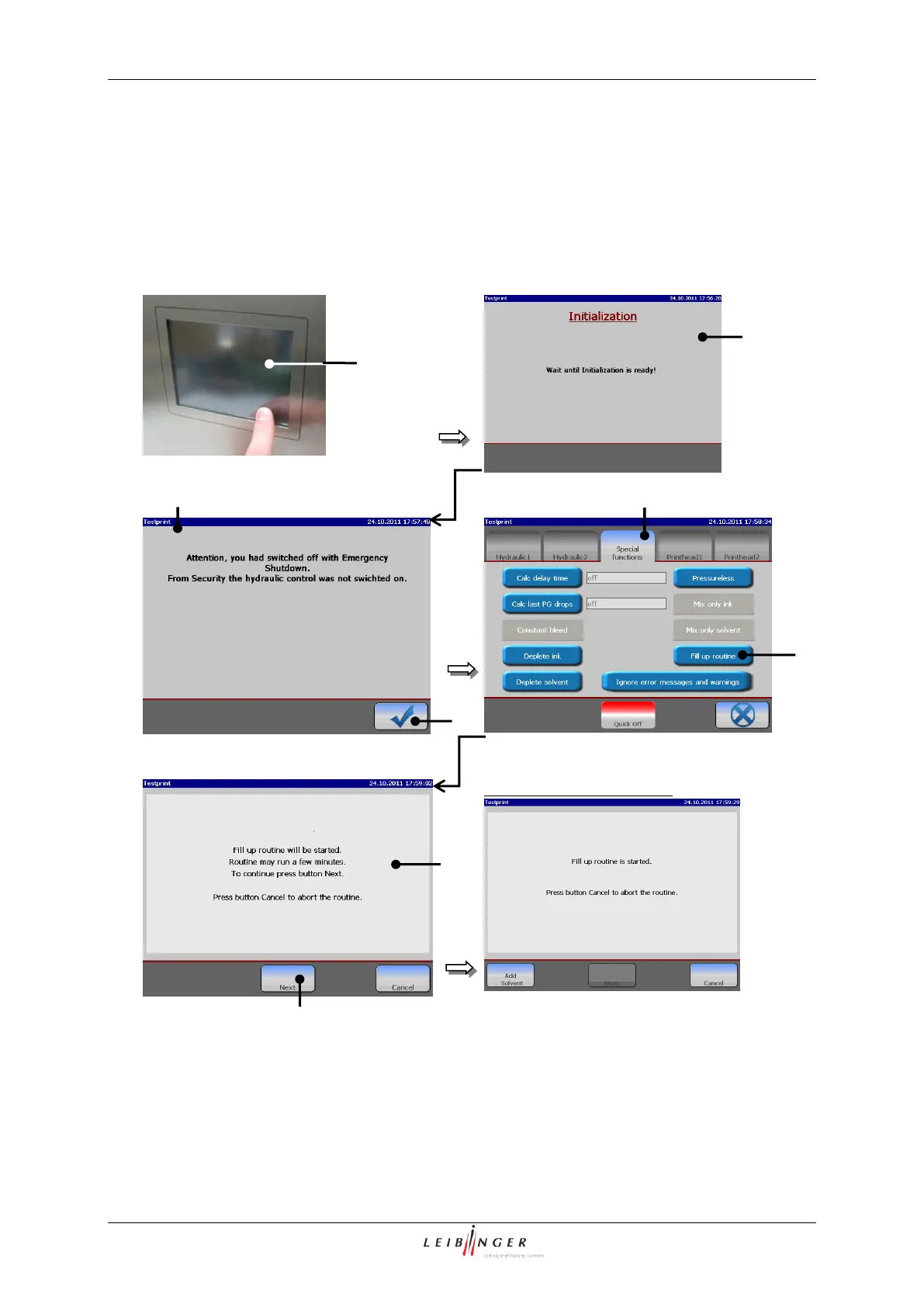

Figure 9
Fill up routine (Step 1)
Message during the routine
1 – TFT-Touch-Display
5 – Register card <Special funktions>
2 – Message <Initialization>
6 – Button <Fill up routine>
3 – Message <Emergency Shutdown>
7 – Message <Fill up routine>
4 – Schaltfläche <OK ()>
8 – Button <Next>
3
2
4
5
7
8
6
1
