Page 92 Data entry/Programming Group 7
Release R1.12 en JET2 neo
7.2.2.1.5 Load an existing graphic
With the button <Open> With the option <Open> you can open an existing graphic for
processing. For selection of a graphic the window „Load graphic“ opens.

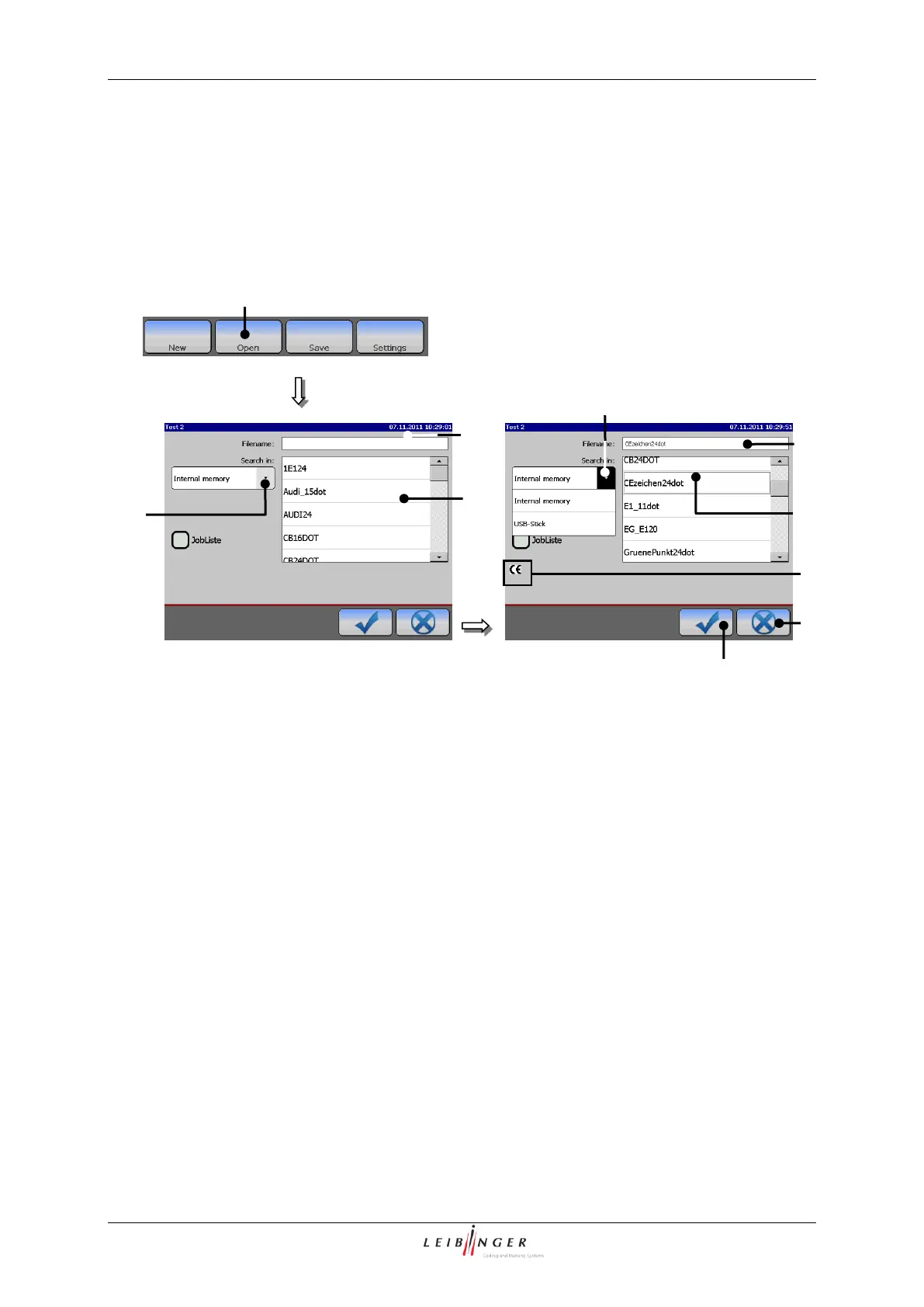

Figure 42
Graphic editor (Load existing graphic)
1 – Button <Open>
6 – Selected graphic
2 – Window<Load Graphic>
7 – Preview of the selected graphic
3 – Selection field <Graphic list>
8 – Button <OK ()>
4 – Pop-up window<Search in>
9 – Button <Cancel>
5 – Display <Filename>
Proceeding:
 Press the button <Open> (1).
 The window <Load Graphic> (2) is faded in.
 Select the requested graphic in the selection field <Graphic list> (3). With the Pop-up
window <Search in> (4) you can select the different memory locations.
 The name of the selected graphic is now shown on the display <Filename> (5) and a
preview (7) of the graphic is displayed.
 Press the button <OK ()> (8) to load the selected graphic for processing or press the
button <Cancel> (9) to cancel the process.
1
3
2
8
5
9
7
4
6
4
