7.2.2.1.3 Edit tools
With the icons (direct buttons) you can select the several edit tools.
Note: The function of the tools corresponds to the Windows™-functions.

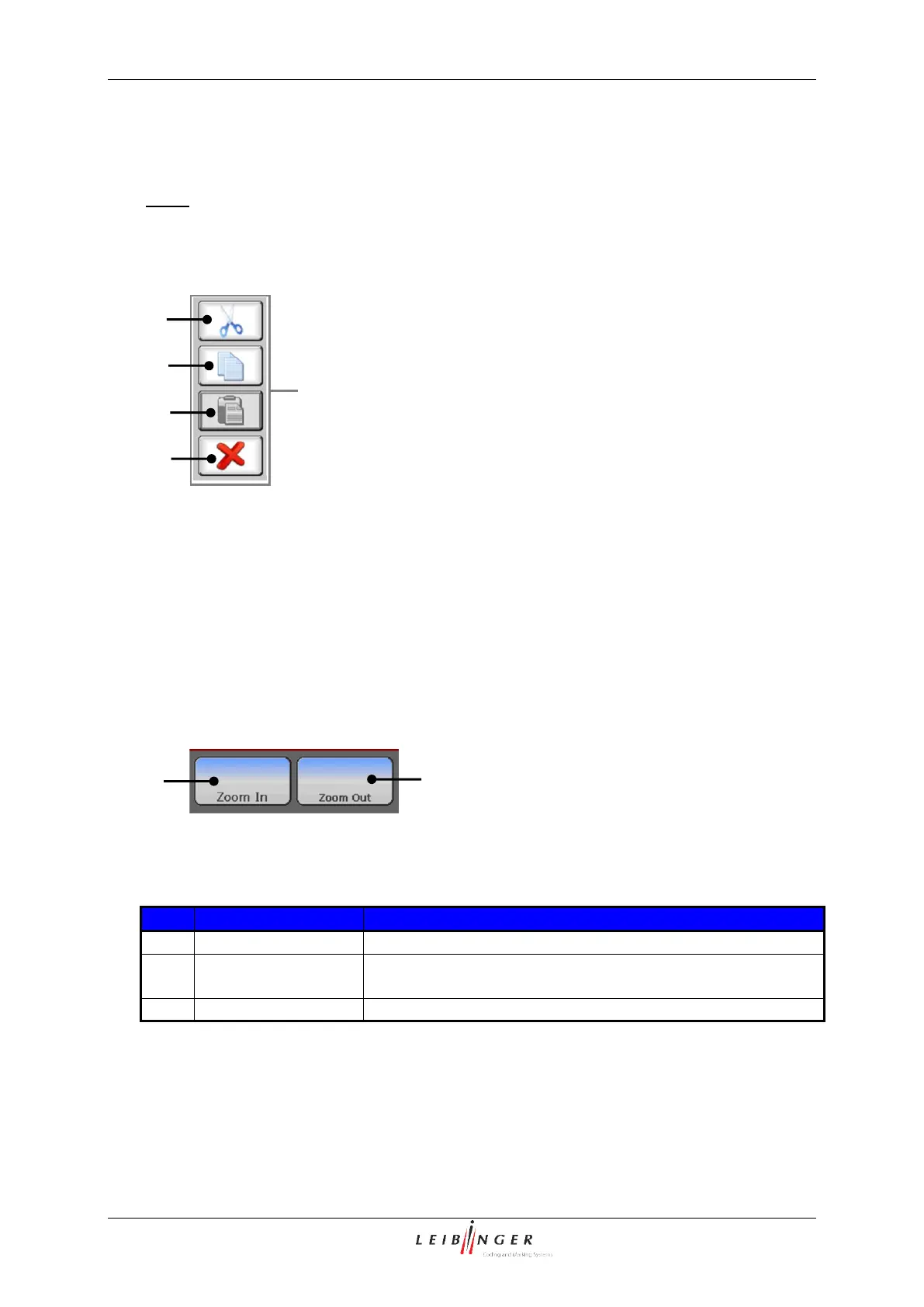

Figure 40
Graphic editor (Edit tools)
1 – Edit tool <Cut>
4 – Edit tool <Delete>
2 – Edit tool <Copy>
5 – Direct buttons (Icons)
3 – Edit tool <Paste>
7.2.2.1.4 Display tools
Figure 41
Graphic editor (Display tools)
1 – Button <Zoom in>
2 – Button <Zoom out>
Pos.
Display tool
Function
1.
Zoom In
Enlarges the display in the input field <Graphic>.
2.
Zoom Out
Reduces the display in the input field <Graphic>.
5
1
2
3
4
1
2
