Leibinger JET2neo - Transport;Start up; Figure 4 - Movable Underframe (Device Support); Figure 5 - Unit Fastening Possibilities

Group 5 Transport/Start up Page 31
JET2 neo Release R1.12 en

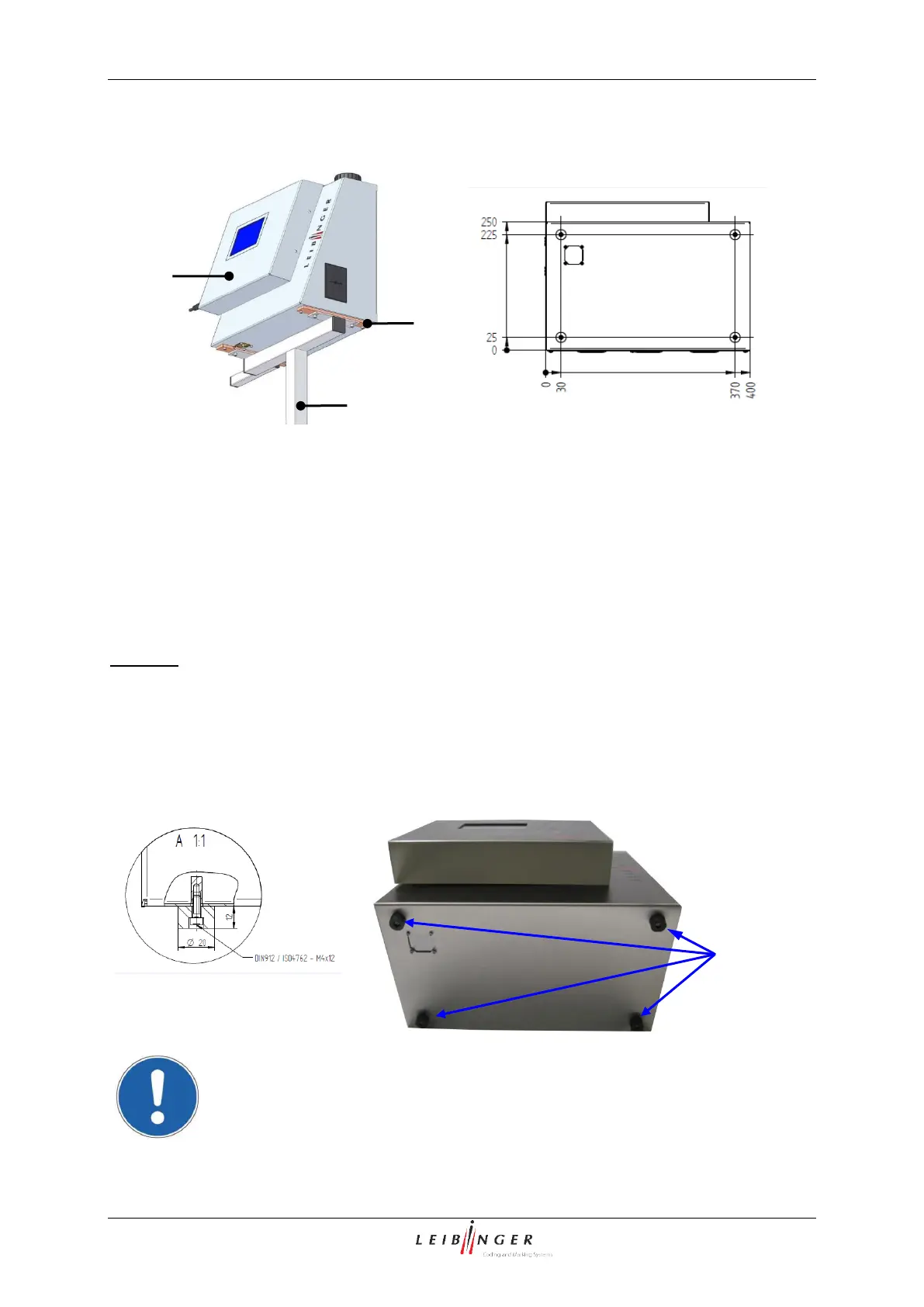

Figure 4
Movable underframe for JET2neo
Ground plate
1 – Movable underframe
2 – Adapter plate JET2neo (2x)
3 – Printer JET2neo
For this it is expedient to place the device on a device support.
Remark: Device carrier set is available as an accessory.
The device has four fastening possibilities for secure setting up and should be screw connected
at the place of setting up.
Figure 5
Fastening possibilities
A place of setting up with sufficient load bearing capacity and stability must
be chosen. Prior to assembly the place of setting up must be cleaned of dirt
and contamination (residue of lubricants etc.) .
2
3
1
Fastening
points
