Leibinger JET2neo - Interface X4 (Inputs); Increment Counter Signal (PIN 2); Reset Counter Signal

Page 276 Appendix Group 12
Release R1.12 en JET2 neo

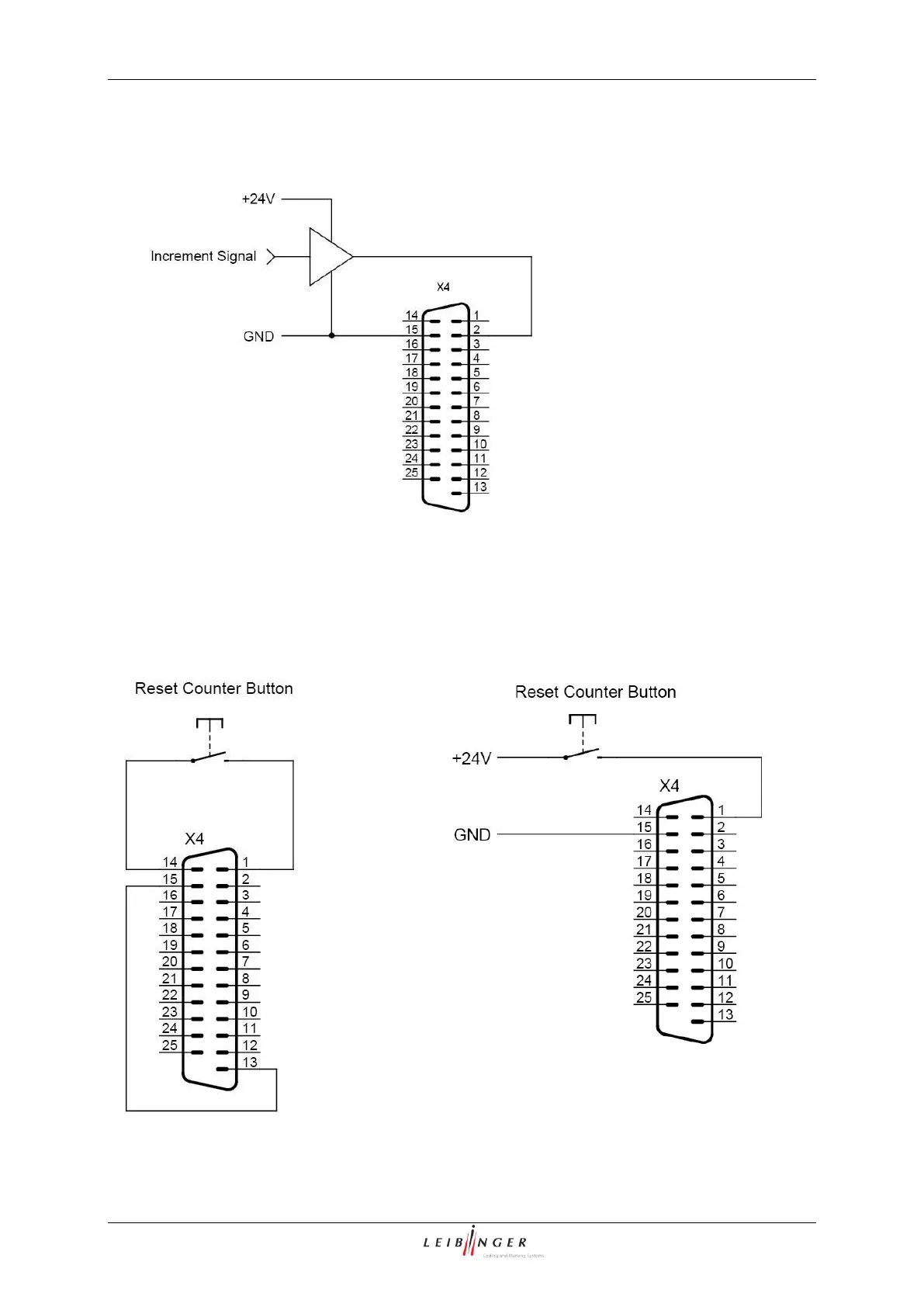

12.2.2 Interface X4 (Inputs)
12.2.2.1 Increment Counter Signal (PIN 2)
Mechanical switch or relay contacts are improper for the counter input because bounce
processes at the switching contacts can cause faulty countings.
12.2.3.2 Reset Counter Signal
(Example with pushbutton)
with internal supply
with external supply
