Leibinger JET2neo - Figure 95 - Test Menu (Printhead); Printhead Functions

Group 7 Data entry/Programming Page 159
JET2 neo Release R1.12 en
7.2.4.4.3 Printhead functions
Under the two register cards <Printhead page 1> and <Printhead page 2> the following
functions are available:
 Ink-Flow-Sensor active
 Piezo test
 Jet adjustment
 Extern ink on/off active
 Charge test
 Ink on/Ink off
 Detector test

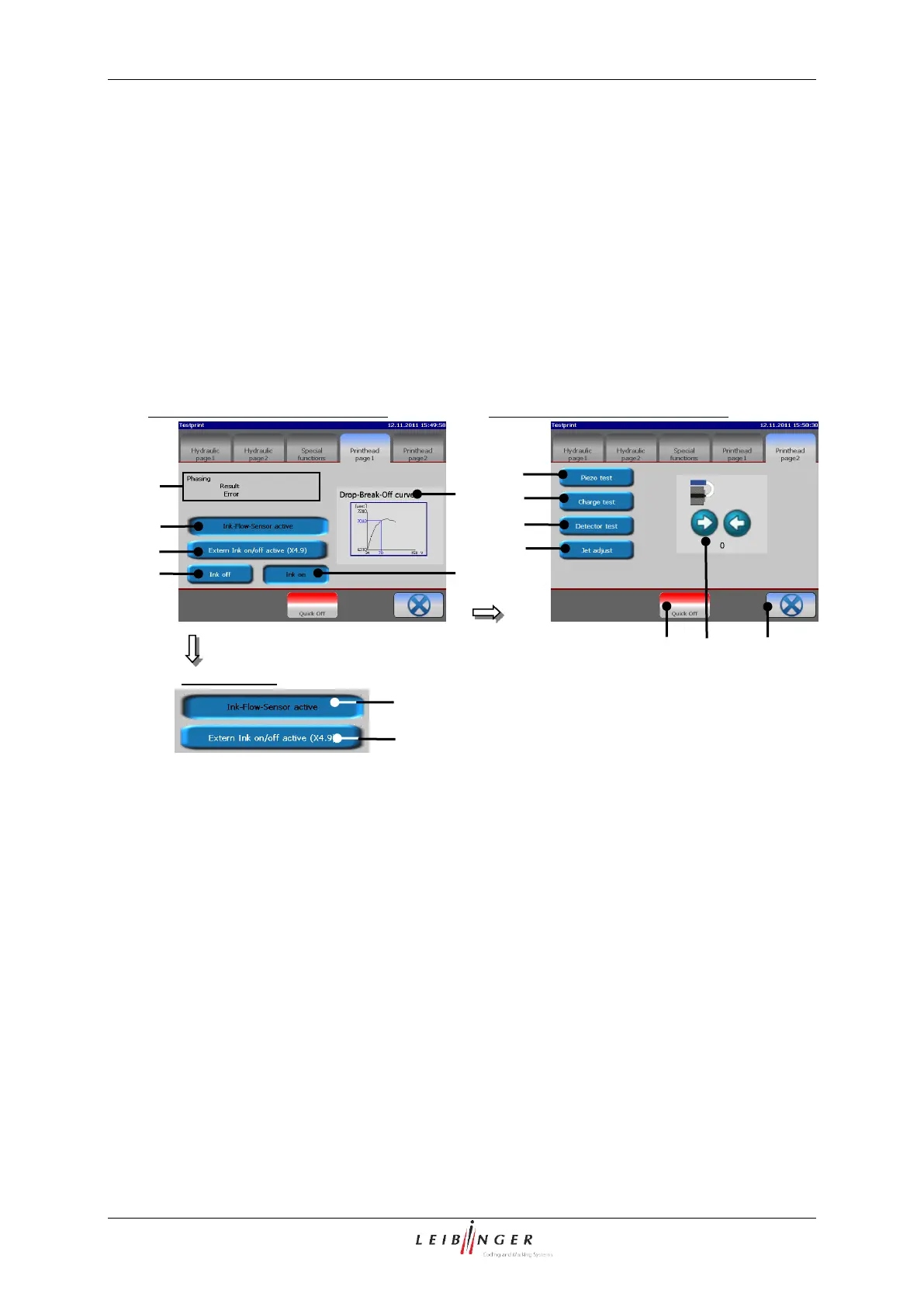

Figure 95
Hydraulic-/Printhead test menu – functional areas „Printhead”
Functional area „Printhead page 1“
Functional area „Printhead page 2“
Example view
Function activated
Function deactivated
1 – Display field <Phasing>
8 – Button <Charge test>
2 – Button <Ink-Flow-Sensor active>
9 – Button <Detector test>
3 – Button <Extern Ink on/off active>
10 – Button <Jet adjust>
4 – Button <Ink off>
11 – Status field <Nozzle>
5 – Button <Ink on>
12 – Button <Quick Off>
6 – Display field <Drop-Break-Off curve> (if
available)
13 – Button <Close>
7 – Button <Piezo test>
