Leibinger JET2neo - Internal Speed

Group 8 Job editor Page 207
JET2 neo Release R1.12 en

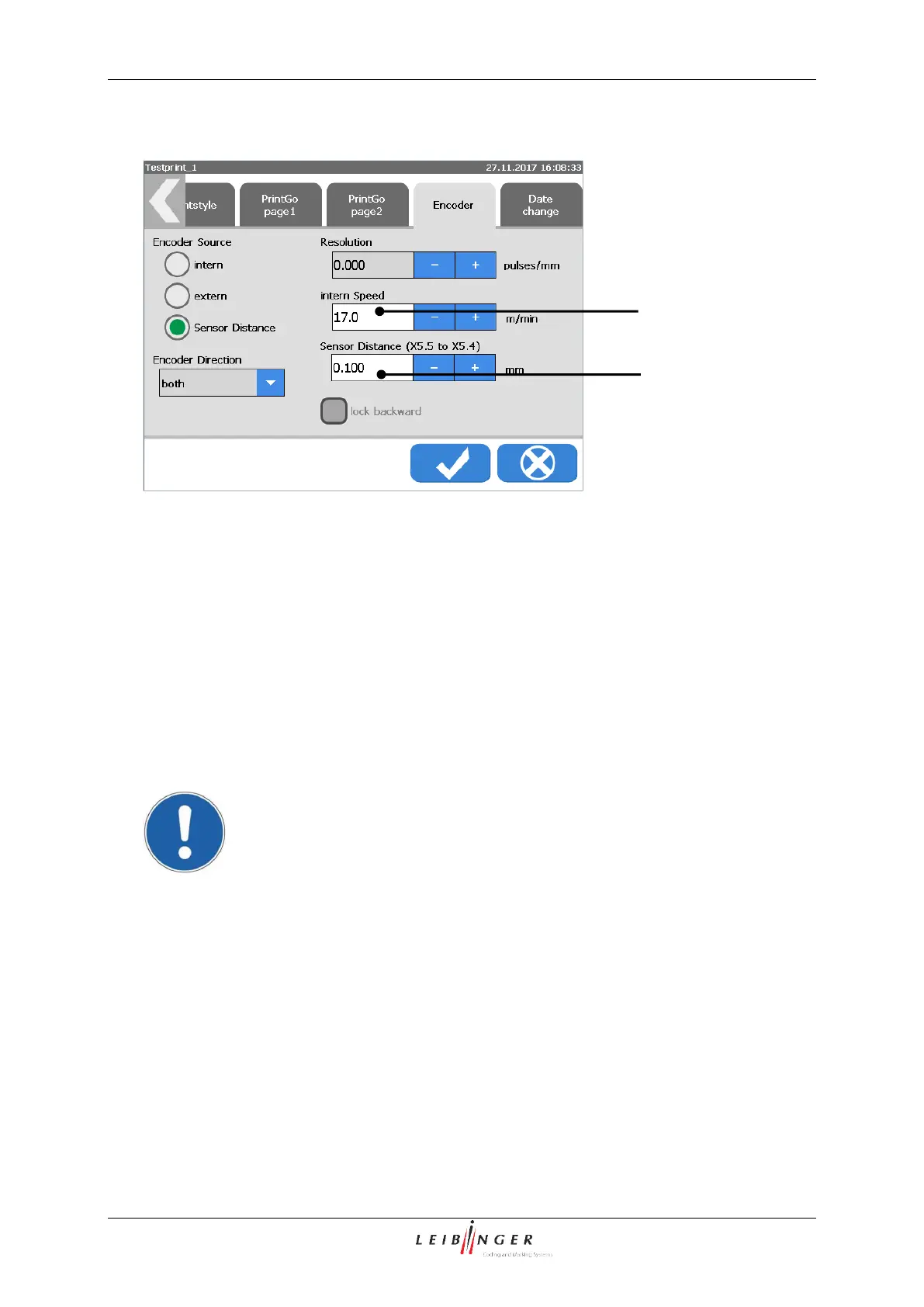

 Sensor Distance
1 – Inputfield <Intern speed m/min>
2 – Inputfield <Sensor Distance X5.5 to X5.4>
8.5.3.2 Internal speed
If you work with the internal encoder source, the production speed, that means the speed
which you need to convey the product below the print head, has to be determined exactly.
This value can be entered directly in the display field <Intern speed>. The input happens
in the unit m/min.
Attention! Unsteady production speeds can be not identified which
causes a distortion of the print image!
If the production speed is higher as the set value, the font will be stretched!
If the production speed is lower as the set value, the font will be
compressed.
2
1
