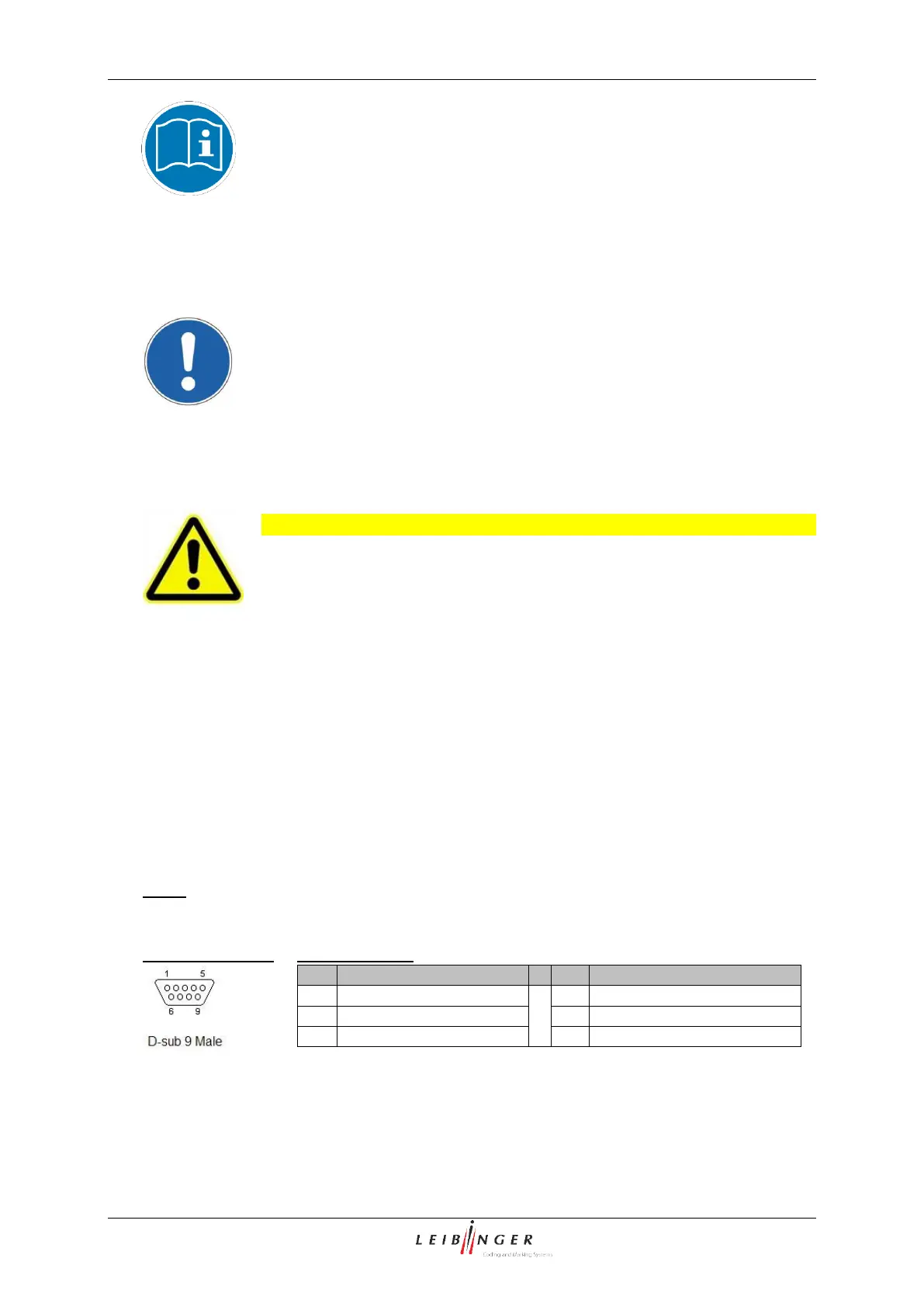

Group 5 Transport/Start up Page 45
JET2 neo Release R1.12 en
The signal type which should be used as encoder source has to be set in
the software of the JET2neo under Main menu Settings Basic
settings Interfaces.
You will find a circuit diagram of the interface in the appendix of this
manual!
5.5.1.2 Mechanical installation
For the mechanical installation of the shaft encoder you have to pay
attention in any case that the encoder is protected against axial and radial
strain during the mounting and the continuous operation. For this a rubber
gaiter or a plastic coupling is used.
If the conditions allow it, the shaft encoder can be also adapted to a production line with a
friction wheel.
Caution – Risks of injury!
The shaft encoder has to be installed or mounted that no risks of
injury can occur!
5.5.2 Interface X5 (PrintGo)
The interface “X5” provides the connection of an external PrintGo-signal. All common
product detectors (e.g. light barrier, product sensor etc.), 24V NPN- as well as 24V
PNP-switching can be connected.
The PrintGo Gate input requires a PNP sensor!
Regarding the software you can select additionally if the positive edge or the negative
edge should be used for the release of the print out.
Note: To inform the JET2neo when a print text should be printed, you require a so-called
Print-Go signal.
