REMOVAL
B546 30 SM

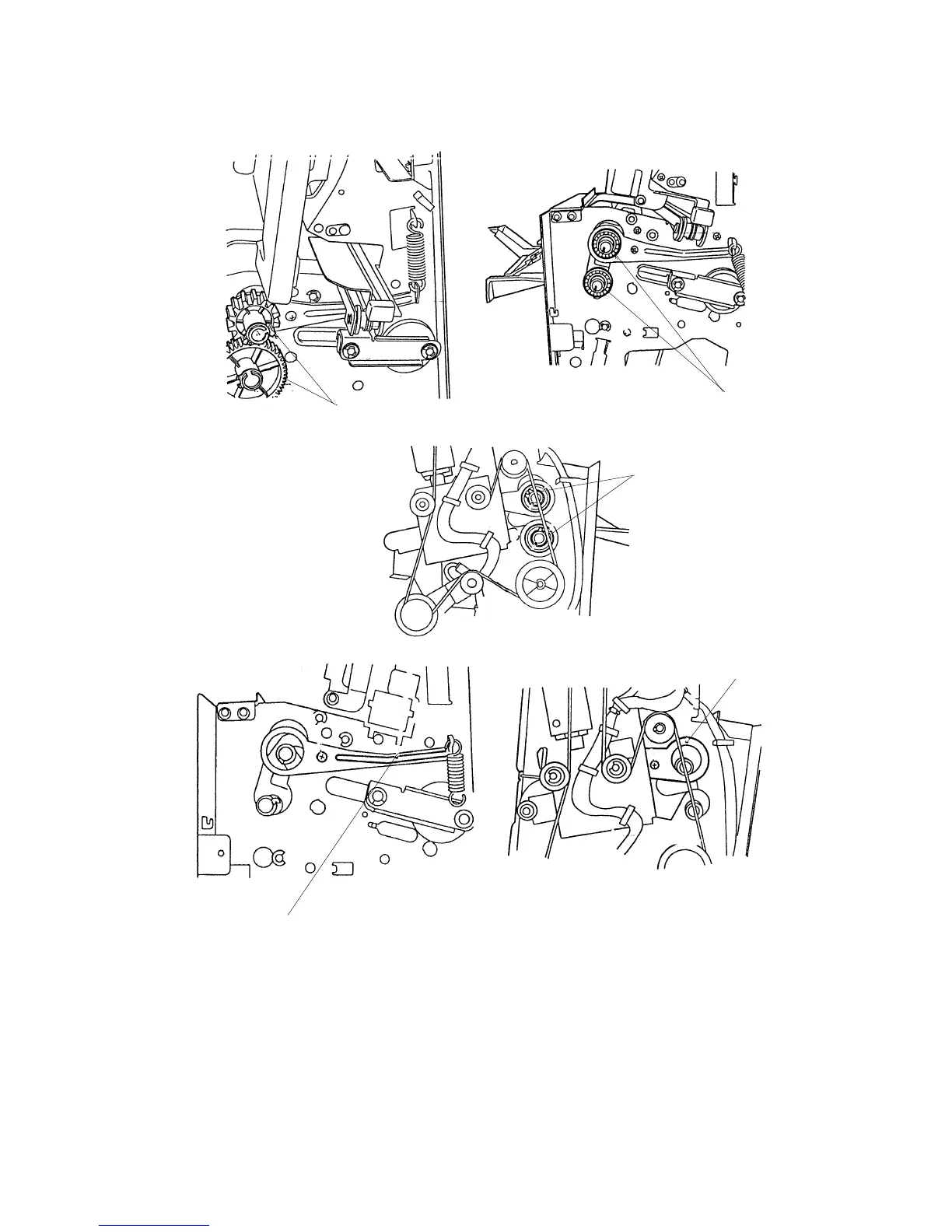

4. Remove the gears [A] and ball bearings [B] (4 C-rings).
5. Remove the front and rear tighteners [C] (
 x 1 stepped ea.).
B546R593.PCX
B546R595.PCX
B546R596.PCX
B546R597.PCX
B546R598.PCX
[A]
[B]
[B]
[C]
[C]
