Paper Tray
Unit B542
DRIVE LAYOUT
SM 5 B542

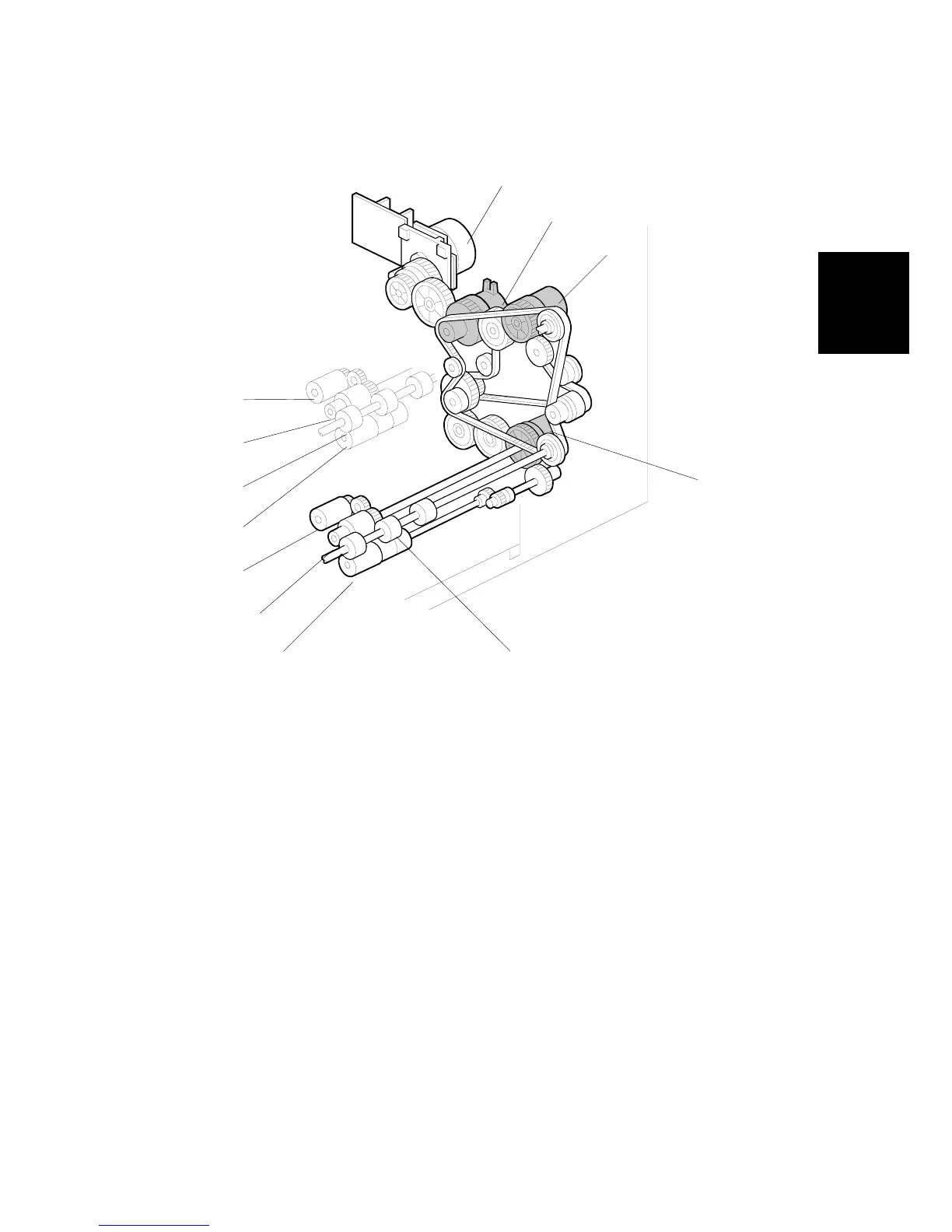

1.5 DRIVE LAYOUT
1. Tray Motor
2. Relay Clutch
3. Upper Paper Feed Clutch
4. Lower Paper Feed Clutch
5. Lower Relay Roller
6. Lower Separation Roller
7. Lower Paper Feed Roller
8. Lower Pick-up Roller
9. Upper Separation Roller
10. Upper Relay Roller
11. Upper Paper Feed Roller
12. Upper Pick-up Roller
A682V502.WMF
1
2
3
4
56
7
8
9
10
11
12
