PICK-UP AND SEPARATION ROLLER RELEASE MECHANISM
B542 6 SM
2. DETAILED DESCRIPTIONS
2.1 PICK-UP AND SEPARATION ROLLER RELEASE
MECHANISM
When the paper tray [A] is not inside the paper tray unit, the separation roller [B] is
away from the paper feed roller [C], and the pick-up roller [D] stays in the upper
position.

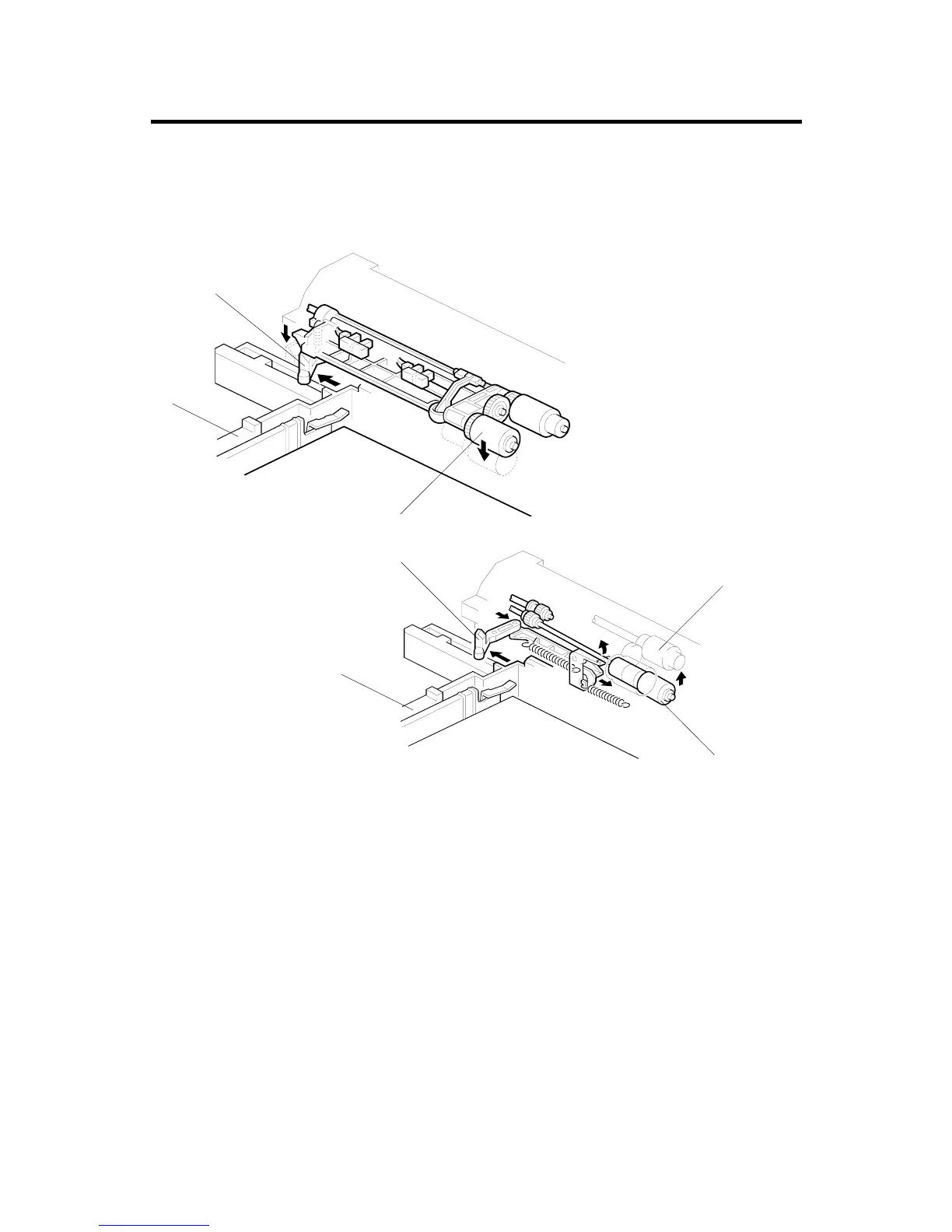

When the paper tray is put into the paper tray unit, it pushes the release lever [E].
This causes the pick-up roller to move down (top diagram) and the separation roller
to move into contact with the paper feed roller (bottom diagram).
