FAX OPTION TYPE 2045
B547 6 SM
Fax Option
B547

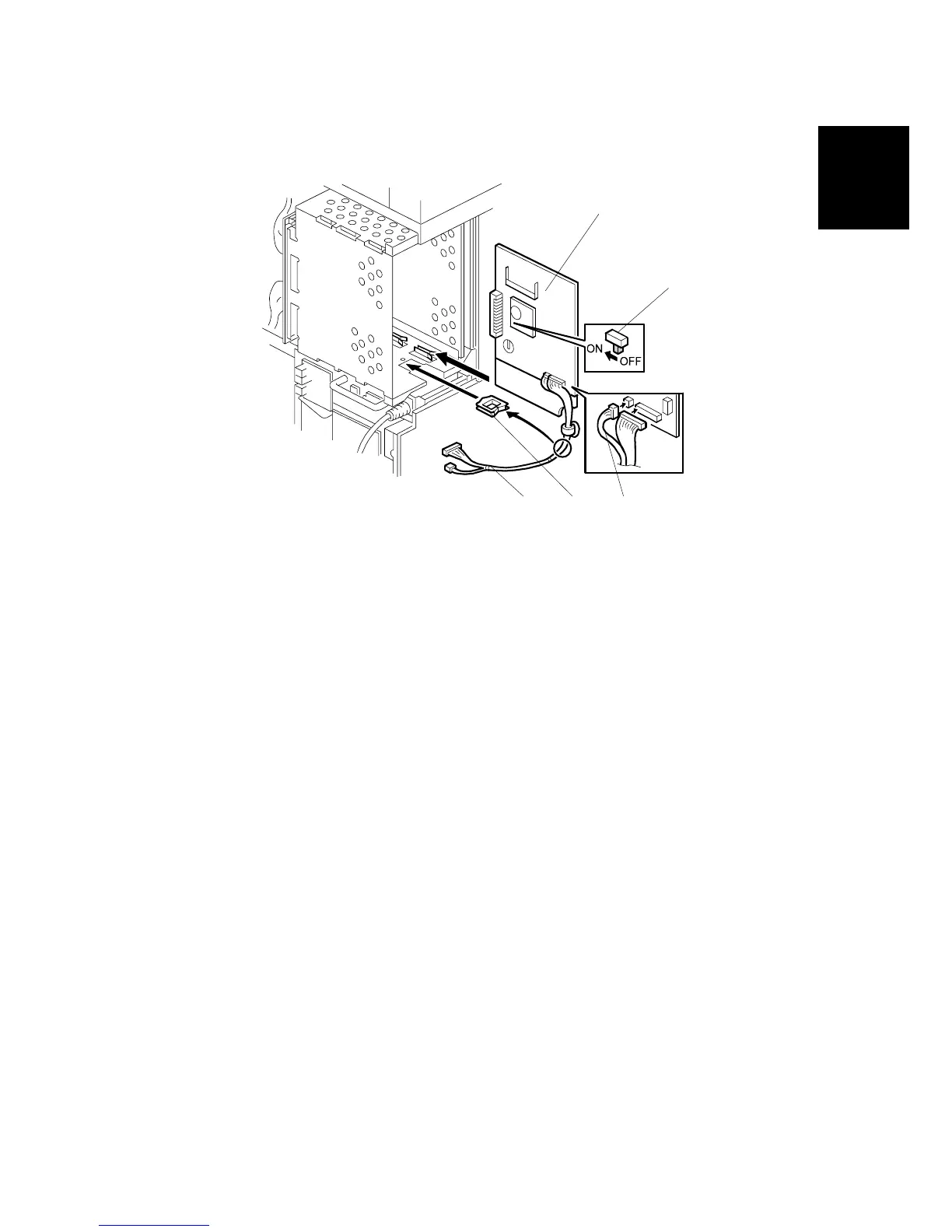

8. Tune on the battery switch (SW1) [A] On the MBU board.
9. Connect harness [B] to the FCU board ( x 2).
10. Slide the FCU board [C] into the right slot of the expansion box.
If any following options are to be installed at the same time, connect the option
board to the FCU board before sliding the FCU board into the expansion box.
Refer to the Installation Procedure of each option.
• Fax Function Upgrade Option Type 185 unit.)
• G3 Interface Unit Type 2045
11. Attach the edge clamp [D] to the bottom of the expansion box, then clamp the
FCU harness [E].
B547I105.WMF
[A]
[B]
[C]
[D][E]
