FAX OPTION TYPE 2045
SM 7 B547
Fax Option
B547

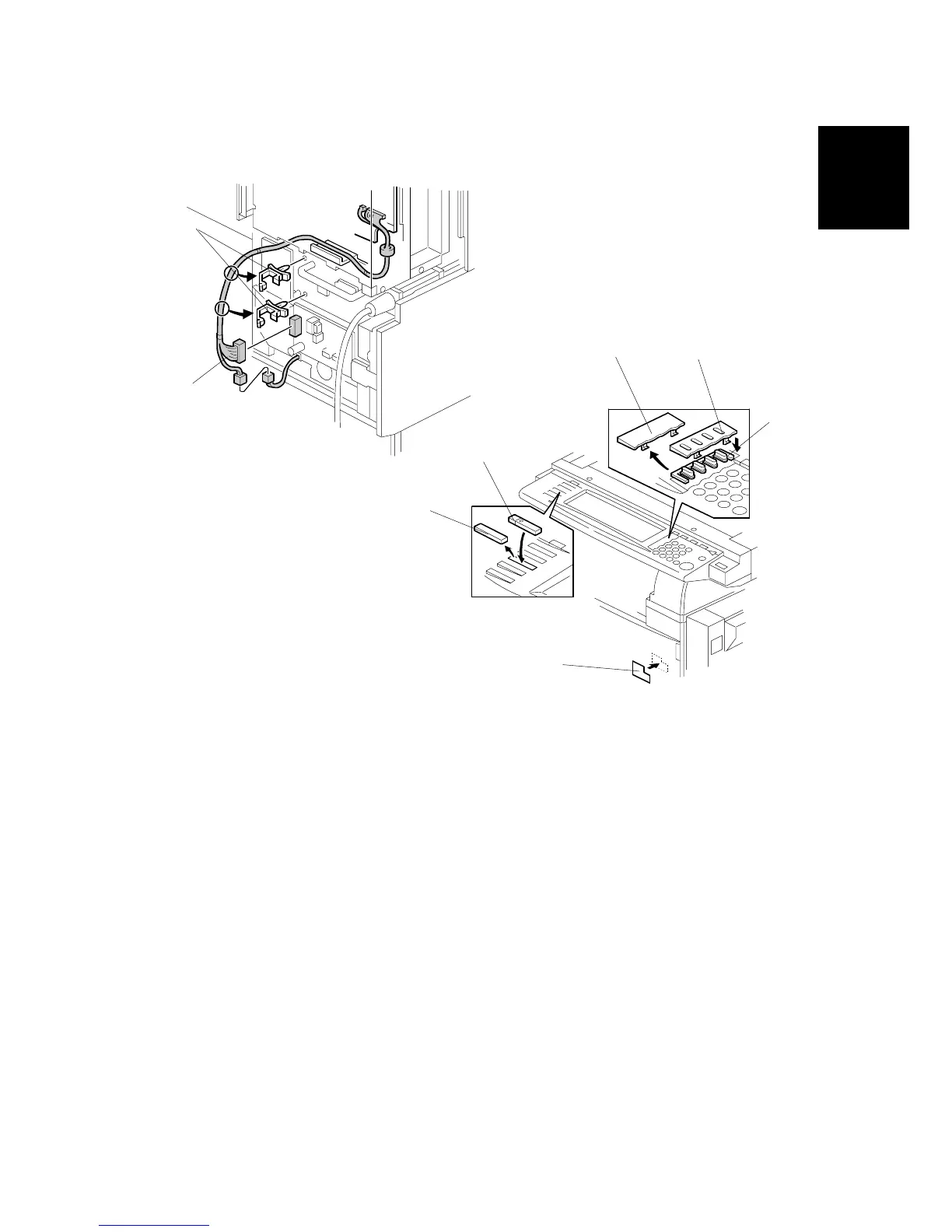

12. Attach the harness clamps [A] and connect the FCU harness [B] to the NCU
board. Then clamp the harness as shown.
13. Reattach the FCU cover and the controller unit.
14. Remove parts [C] and [D], then install parts [E], [F] and [G]. Affix the super G3
decal [H] on the front cover as shown.
B547I906.WMF
B547I905.WMF
[C]
[D]
[E]
[F]
[G]
[H]
[A]
[B]
To Next Page
