G3 INTERFACE UNIT TYPE 2045
SM 11 B547
Fax Option
B547

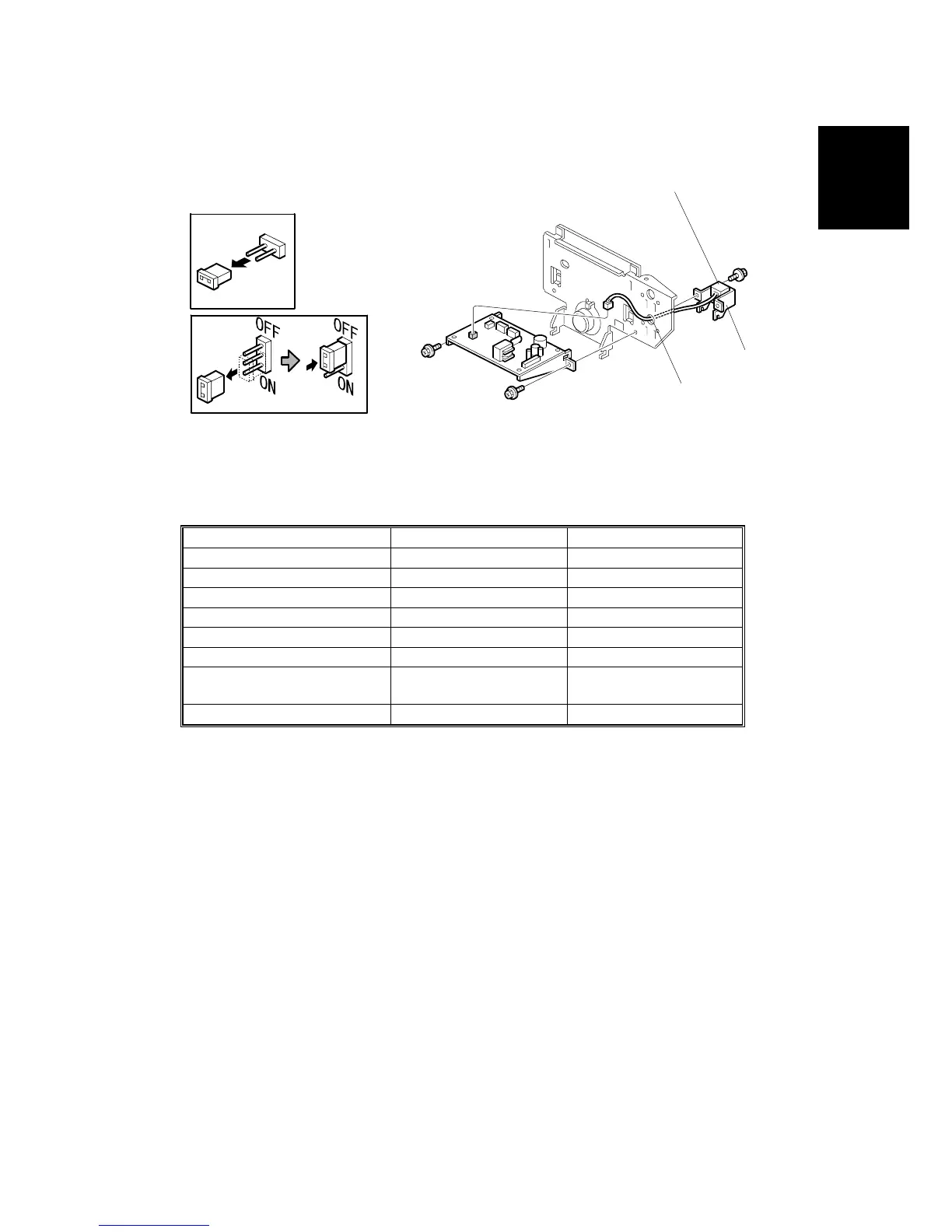

11. Set up the jumper switches [A and B] on the NCU.
NOTE: European/Asian models only (non-U.S. version: B591-27)
Region/Country TB1 [A] TB2 [B]
Hong Kong OFF OFF
Hungary ON ON
Poland ON OFF
Czech Republic ON OFF
Israel ON ON
South Africa ON ON
Regions/countries where
the CTR21 standard is valid
ON ON
Other ON OFF
TB1 ON: Keep the jumper attached. OFF: Remove the jumper.
TB2 ON: Keep the jumper at ON. OFF: Move the jumper to OFF.
NOTE: You must change the country code in both system switch 0F and NCU
parameter CC (service function 08-0).
12. Attach the telephone jack [C] to the bracket [D]
13. Run through the harness through the lower hole [E] in the NCU bracket, then
secure the telephone jack bracket to the NCU unit ( x 1).
B547I914.WMF
B547I925.WMF
[C]
[D]
[E]
[A]
[B]
