G3 INTERFACE UNIT TYPE 2045
B547 12 SM
Fax Option
B547

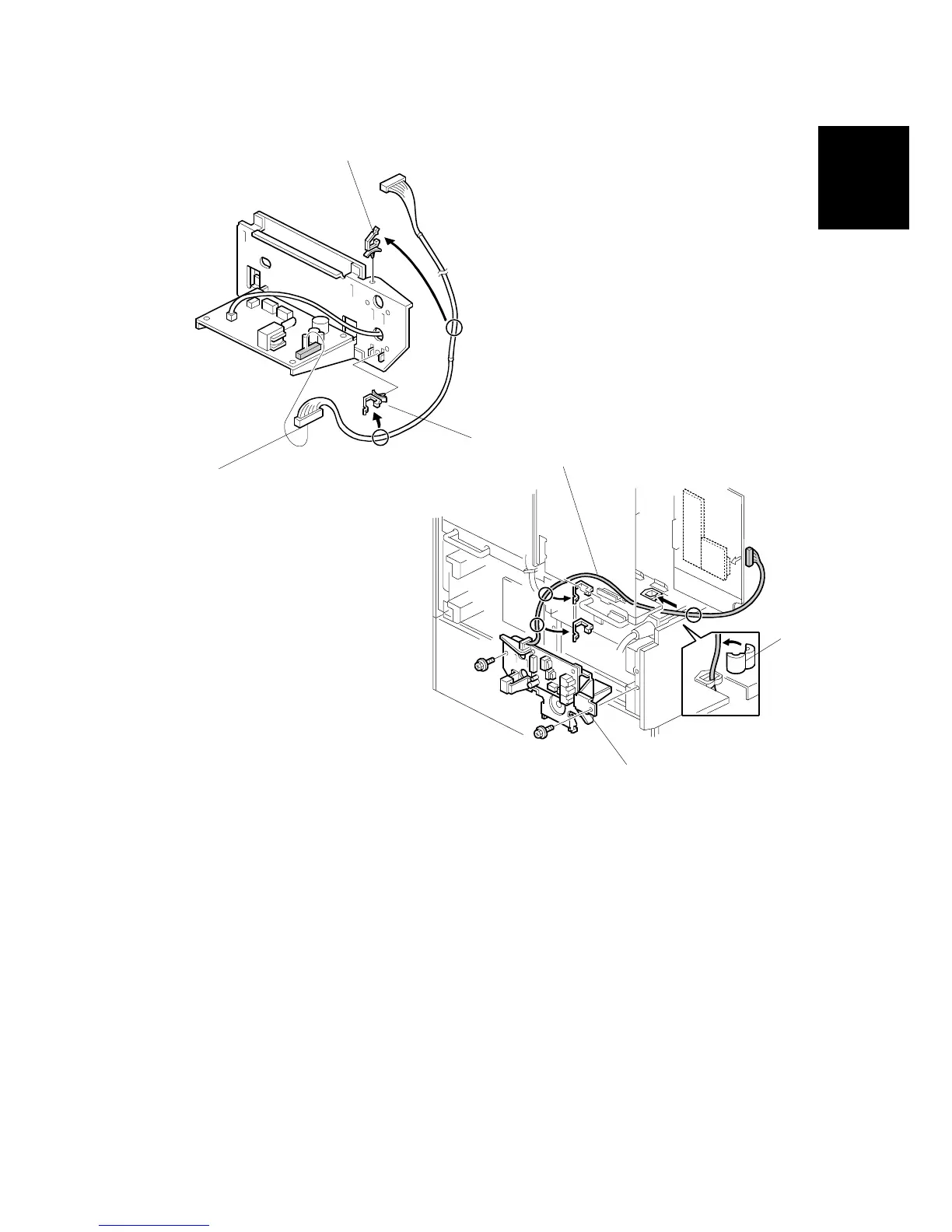

14. Connect harness [A] to the option NCU board
15. Attach the harness clamps [B] (x2) then clamp the harness.
16. Attach the NCU unit [C] to the machine ( x 2), and slide the FCU board into
the machine.
17. Run harness [D] through the holes.
18. Attach the ferrite core [E] to the harness.
B547I915.WMF
B547I916.WMF
[A]
[B]
[B]
[C]
[D]
[E]
