ARDF INSTALLATION (B541)
B079/B082 1-46 SM

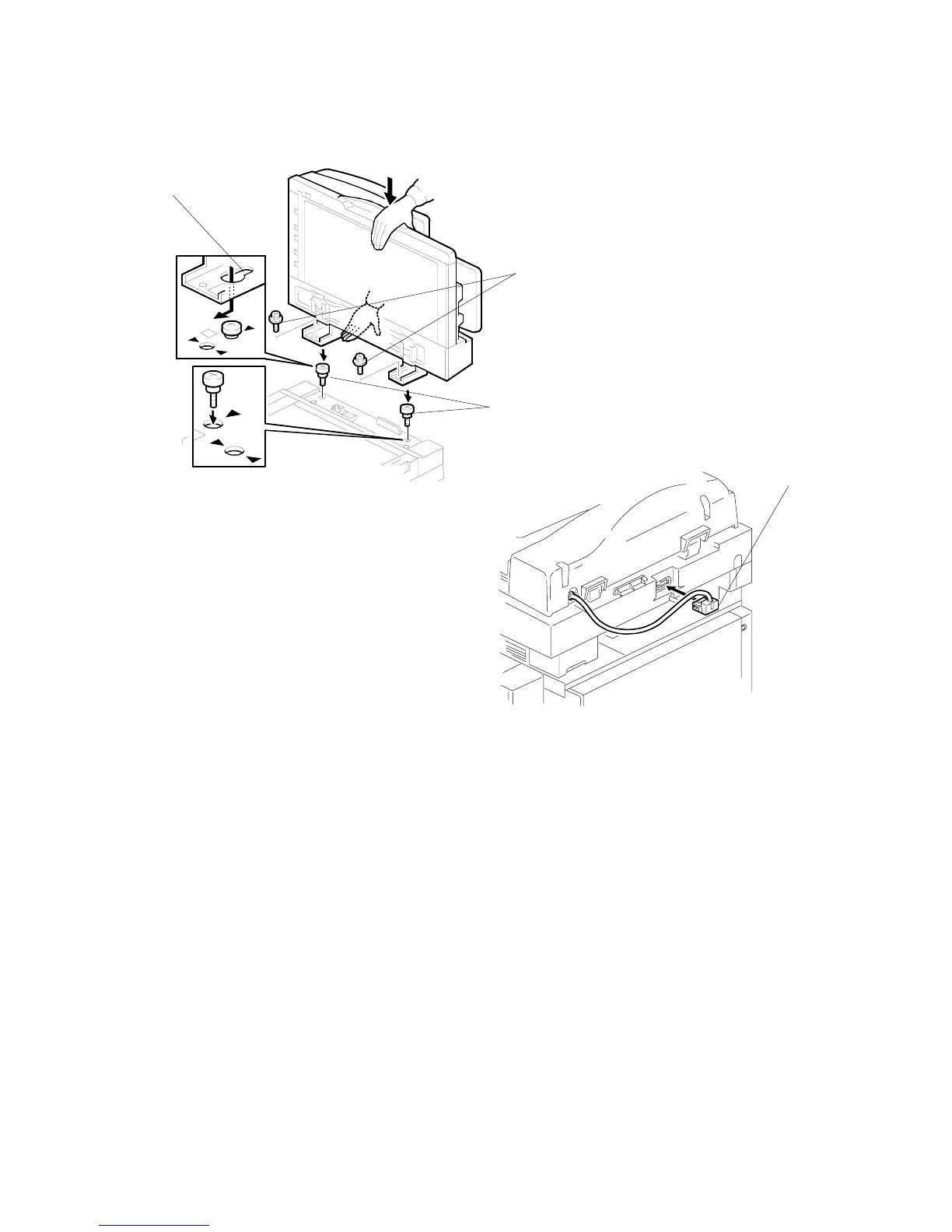

2. Attach and tighten [A] ( x 2 stud).
3. Mount the ARDF by aligning the screw keyholes [B] of the ARDF support plate
over the stud screws, and slide the ARDF toward the front of the machine.
NOTE: To avoid damaging the ARDF, hold it as shown in the illustration.
4. Secure the ARDF [C] ( x 2).
5. Connect the I/F cable [D] ( x 1) to the main machine.
B541I905.WMF
B541I124.WMF
[A]
[B]
[C]
[D]
