Ricoh B079 - Page 85

Installation
BOOKLET FINISHER INSTALLATION (B546)
SM 1-55 B079/B082

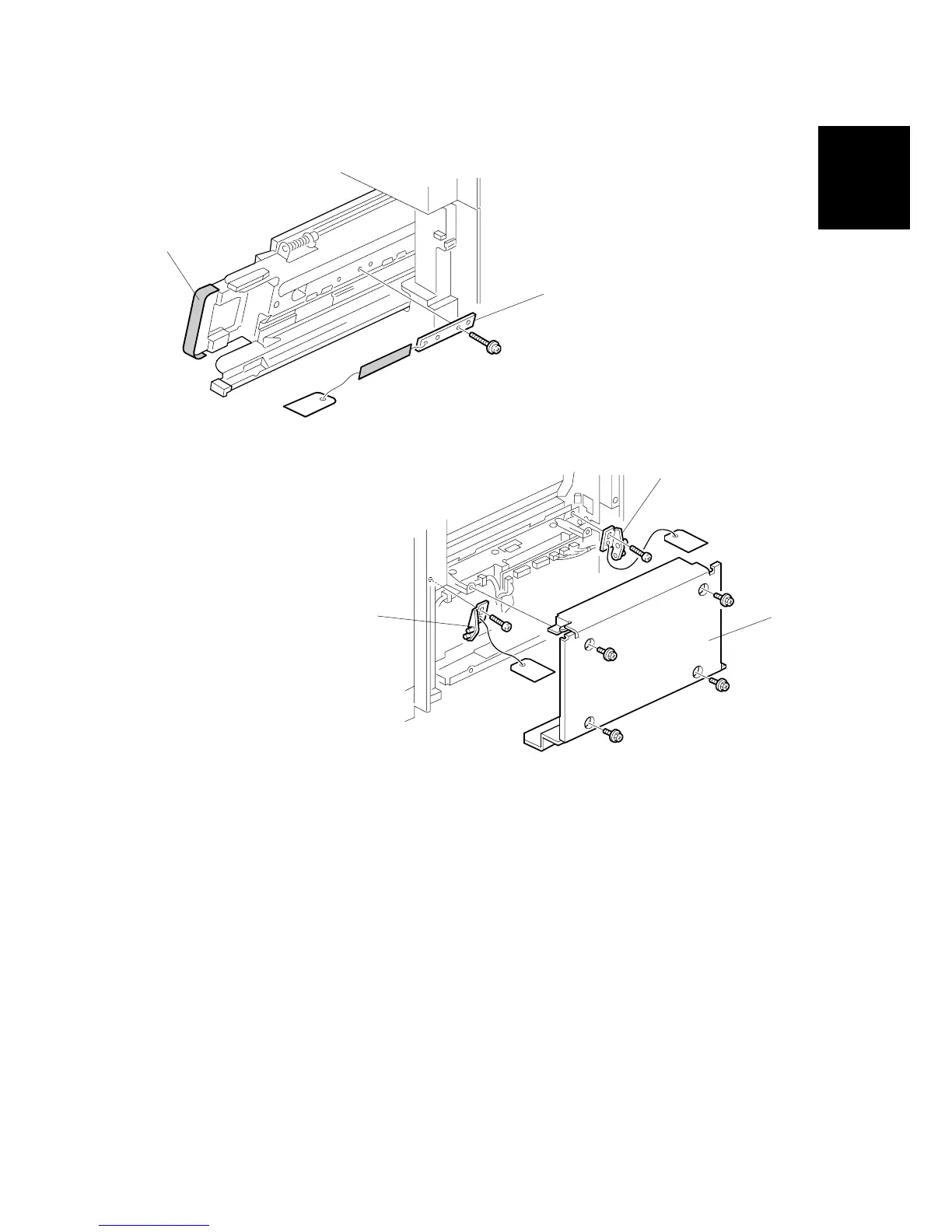

2. Open the front under door and pull out the staple unit [A].
3. Remove the stapler unit lock plate [B] ( x 1).
4. Push in the stapler unit and shut the front lower door.
5. Remove the right lower cover [C] ( x 4).
6. Remove the front pressure release bracket [D] ( x 1).
7. Remove the rear pressure release bracket [E] ( x 1).
8. Reattach the cover [C].
B546I105.WMF
B546I103.WMF
[C]
[E]
[A]
[B]
[D]
