Ricoh B079 - Page 89

Installation
1000 SHEET FINISHER (B408)
SM 1-59 B079/B082
1.14 1000 SHEET FINISHER (B408)
1.14.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
Description Q’ty
1 Front Joint Bracket................................................................1
2 Rear Joint Bracket
*1
.............................................................1
3 Rear Joint Bracket ................................................................1
4 Grounding Plate....................................................................1
5 Copy Tray .............................................................................1
6 Staple Position Decal............................................................1
7 Screw - M4 x 14....................................................................4
8 Knob Screw - M4 x 10 ..........................................................1
9 Screw - M3 x 8......................................................................1
10 Knob Screw - M3 x 8 ..........................................................1
*1
: Rear joint bracket is not required for these models.

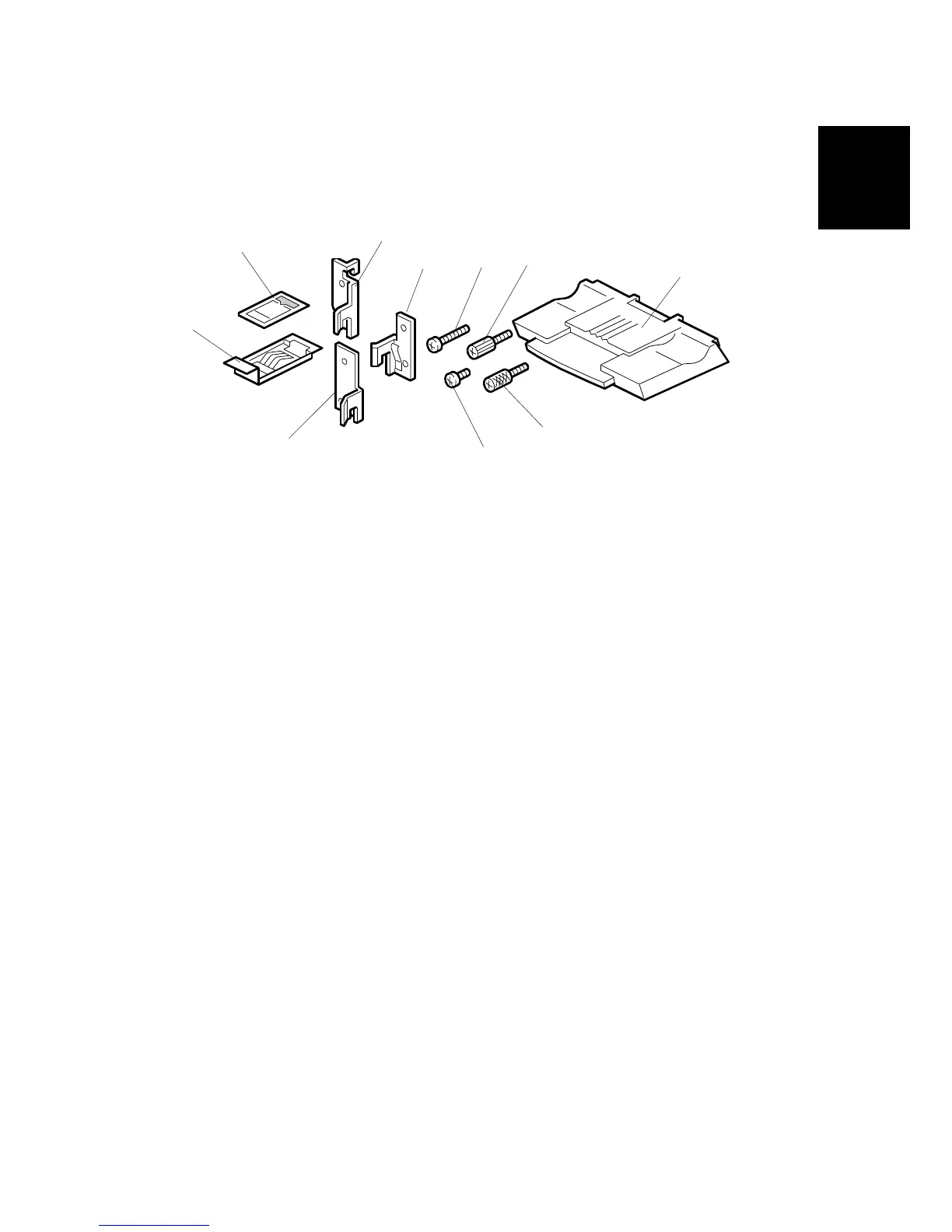

B408I502.WMF
1
2
3
4
5
8
9
6
7
10
