Caster Table Type M41 (D3GW03)
SM 2-63 D0CA/D0C9/D0C8/D0CB

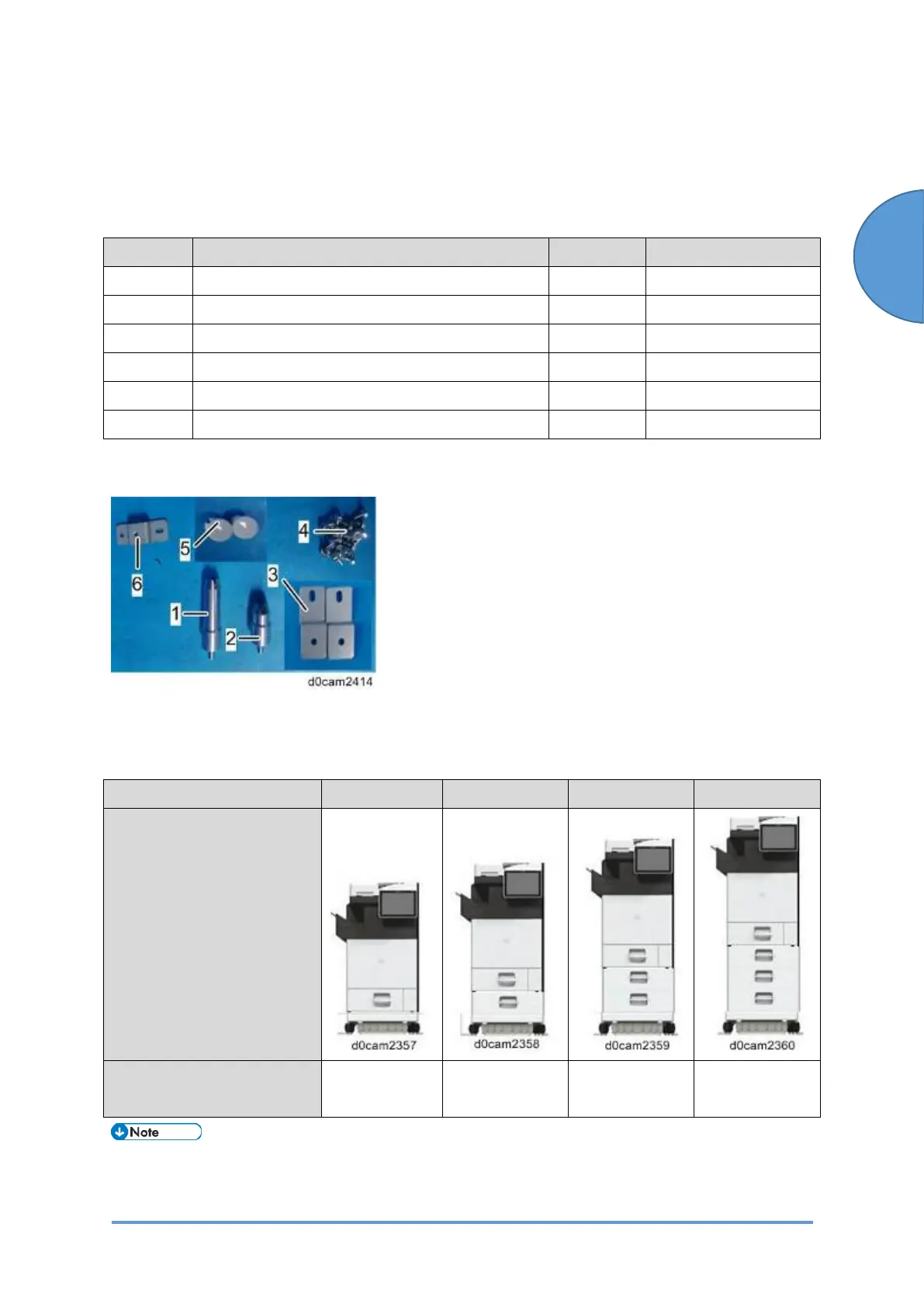

2.12 CASTER TABLE TYPE M41 (D3GW03)
2.12.1 ACCESSORY CHECK
No. Description Q’ty Remarks
1 Positioning Pin Right 1
2 Positioning Pin Left 1
3 Joint Bracket A 2
4 Fixing Screw 7
5 Cap for a Handle 2
6 Joint Bracket B 1
2.12.2 INSTALLATION CONDITIONS
Possible configurations are as follows:
Optional paper feed units 0 1 2 3
Securing with Joint Bracket
B
Not Required Required Required Required
Do not use a joint bracket if the optional paper feed unit is not installed. If used, the paper feed
tray cannot be pulled out.
