Drive
D0CA/D0C9/D0C8/D0CB 4-144 SM

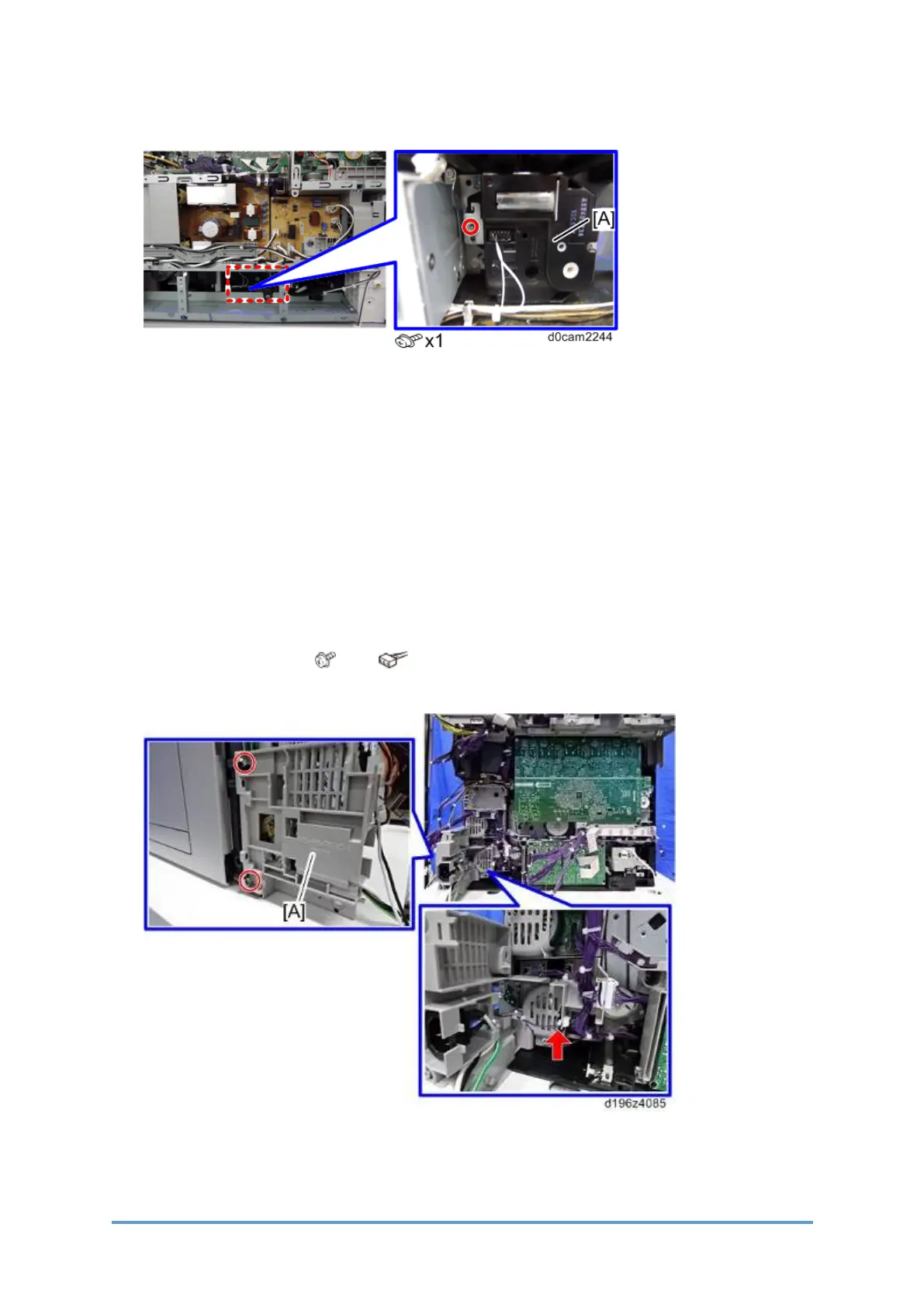

1. Remove the tray lift motor (M15) [A]
4.13.8 FUSING MOTOR (M13)
1. Remove the following parts.
• Right Rear Cover
• Rear Cover
• Upper Left Cover
• Left Cover
• Controller Box
• PSU Exhaust Fan (FAN4)
• PSU (AC) (PCB17), PSU (DC) (PCB16)
2. Remove the cover [A]. ( × 2, × 1)
IM C300 series
To Next Page
