Ricoh IM C300

Replacement and Adjustment
SM 8-5 D0CA/D0C9/D0C8/D0CB
Smart
Operation
Panel
8.1.3 LCD
1. Remove the operation panel unit. (Operation Panel)
2. Remove the main controller board (Main Controller Board).

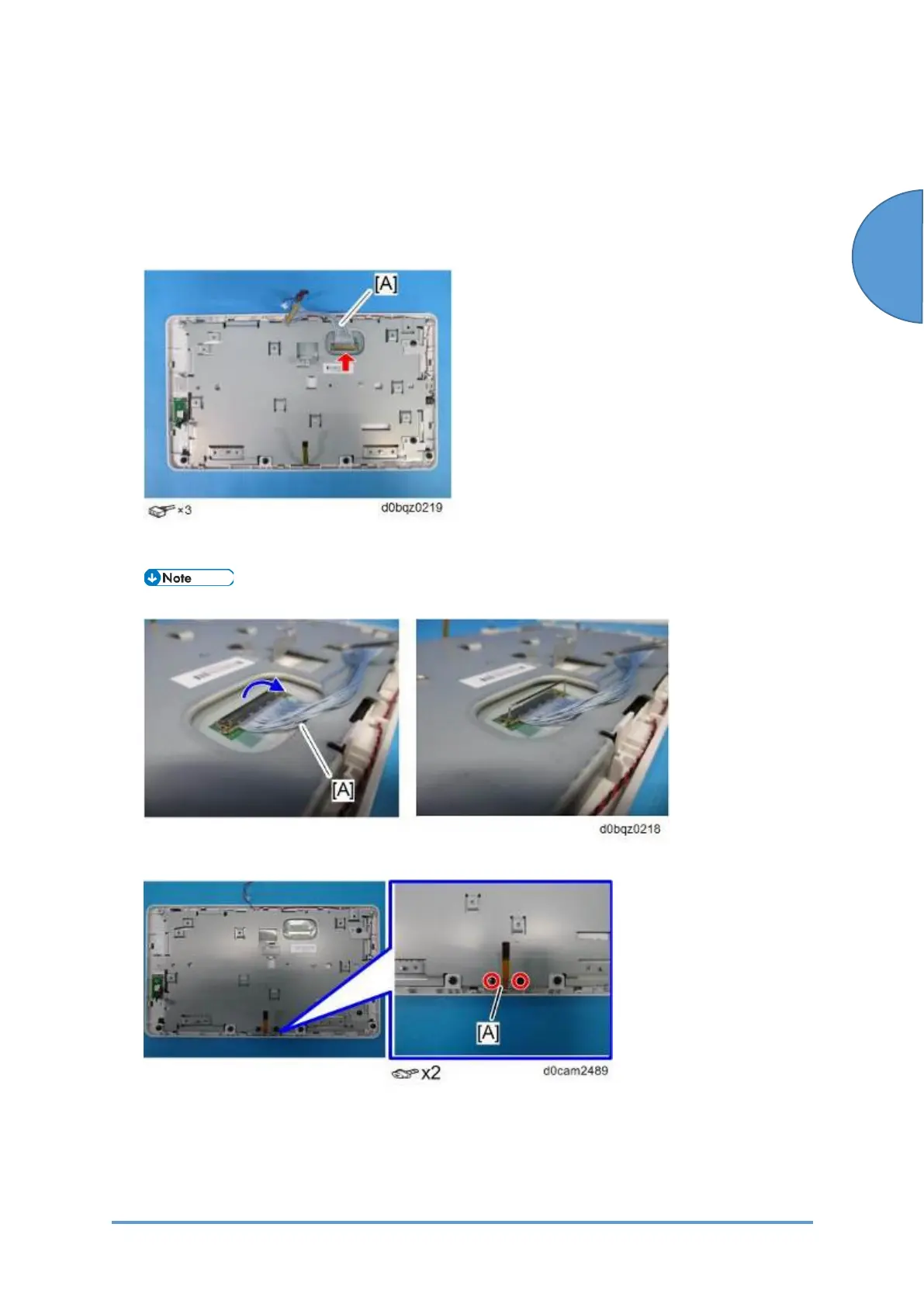

3. Remove the connector of the LCD I/F cable [A].
Lift the fastener of the LCD I/F cable [A].
4. Remove the bracket [A].
