Paper Feed and Registration (IM C300 Series)
D0CA/D0C9/D0C8/D0CB 7-80 SM
7.12 PAPER FEED AND REGISTRATION (IM C300 SERIES)

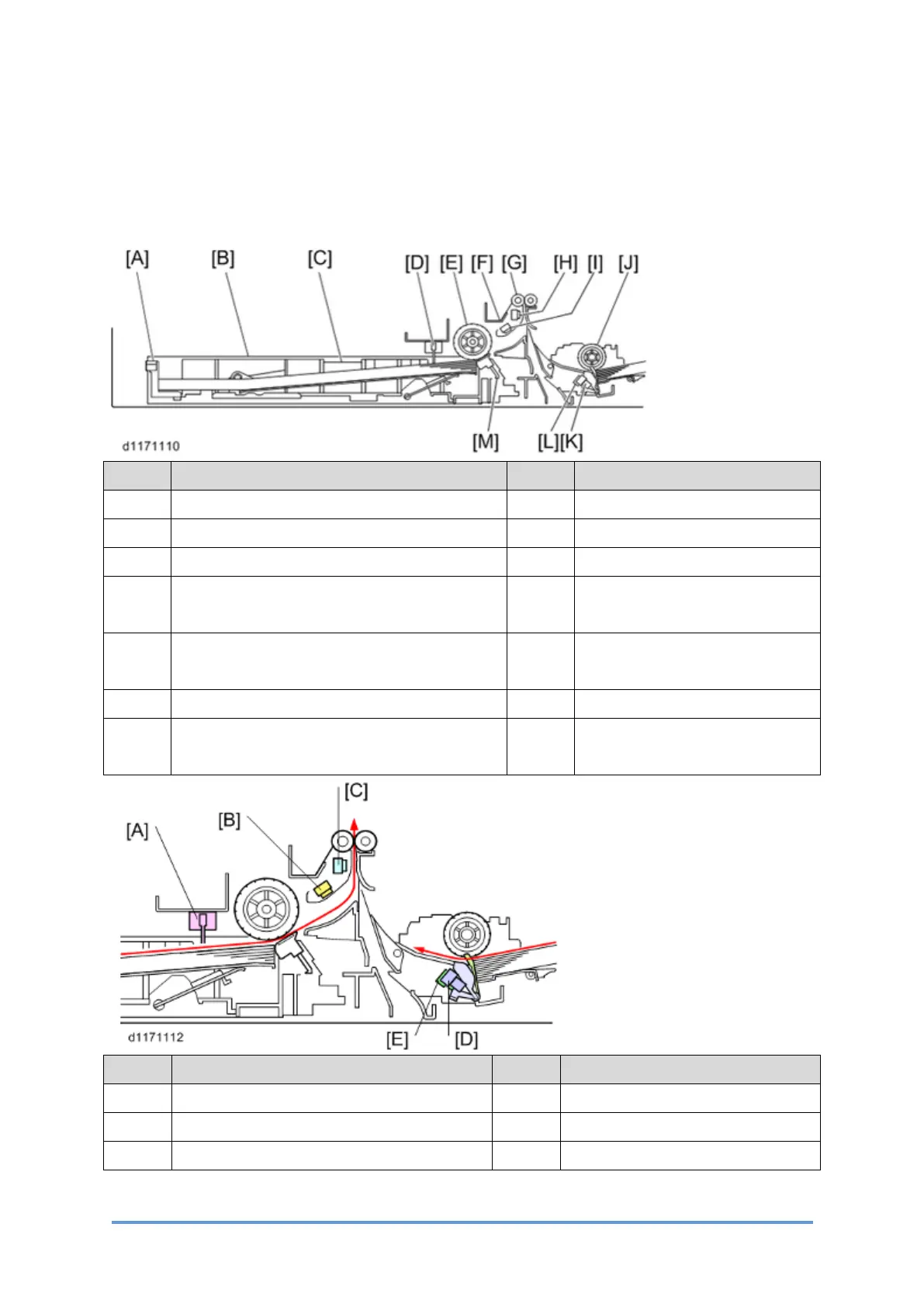

7.12.1 OVERVIEW
Callout Item Callout Item
[A] End Fence [H] Registration Sensor (S32)
[B] Paper Feed Tray [I] Paper Feed Sensor (S31)
[C] Side Fence [J] Bypass Feed Roller
[D] Tray Paper End Sensor (Main Unit) (S30) [K] Bypass Paper Width Sensor
(S5)
[E] Paper Feed Roller [L] Paper End Sensor (Bypass)
(S6)
[F] Dust Collection Tray [M] Friction Pad
[G] Registration Rollers (Right: Driven, Left:
Drive)
- -
Callout Item Callout Item
[A] Tray Paper End Sensor (Main Unit) (S30) [D] Bypass Paper Width Sensor (S5)
[B] Paper Feed Sensor (S31) [E] Paper End Sensor (Bypass) (S6)
[C] Registration Sensor (S32) - -
