Main Machine Installation: Installation Procedures
D0CA/D0C9/D0C8/D0CB 2-20 SM

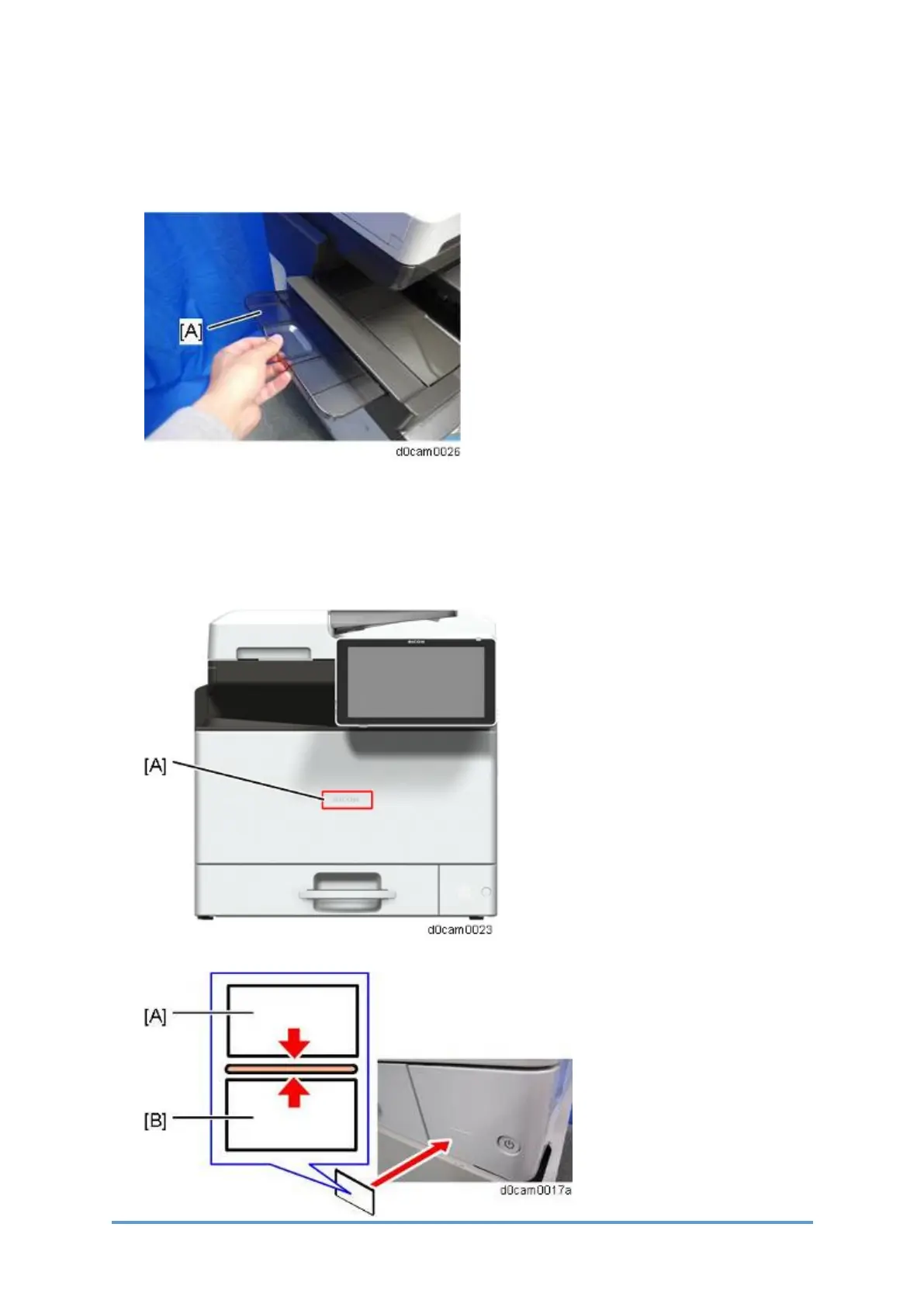

2.4.4 INSTALLING THE FINISHER EXTENSION TRAY (IM C400SRF
ONLY)
1. Install the extension tray [A] in the finisher.
2.4.5 BRAND PLATE, DECALS
1. Attach the brand plate [A] to the front cover, if it is not attached.
2. Attach the tray number [A] and paper size [B] decals to the paper feed tray.
