Electrical Components
SM 4-233 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.19.8 HIGH-VOLTAGE POWER SUPPLY (DEVELOPMENT)
(PCB22)
1. Remove the following parts.
• Rear Cover
• Upper Left Cover
• Left Cover
• Right Rear Cover
• Controller Box
• PSU Exhaust Fan (FAN4)
• PSU (AC) (PCB17), PSU (DC) (PCB16)

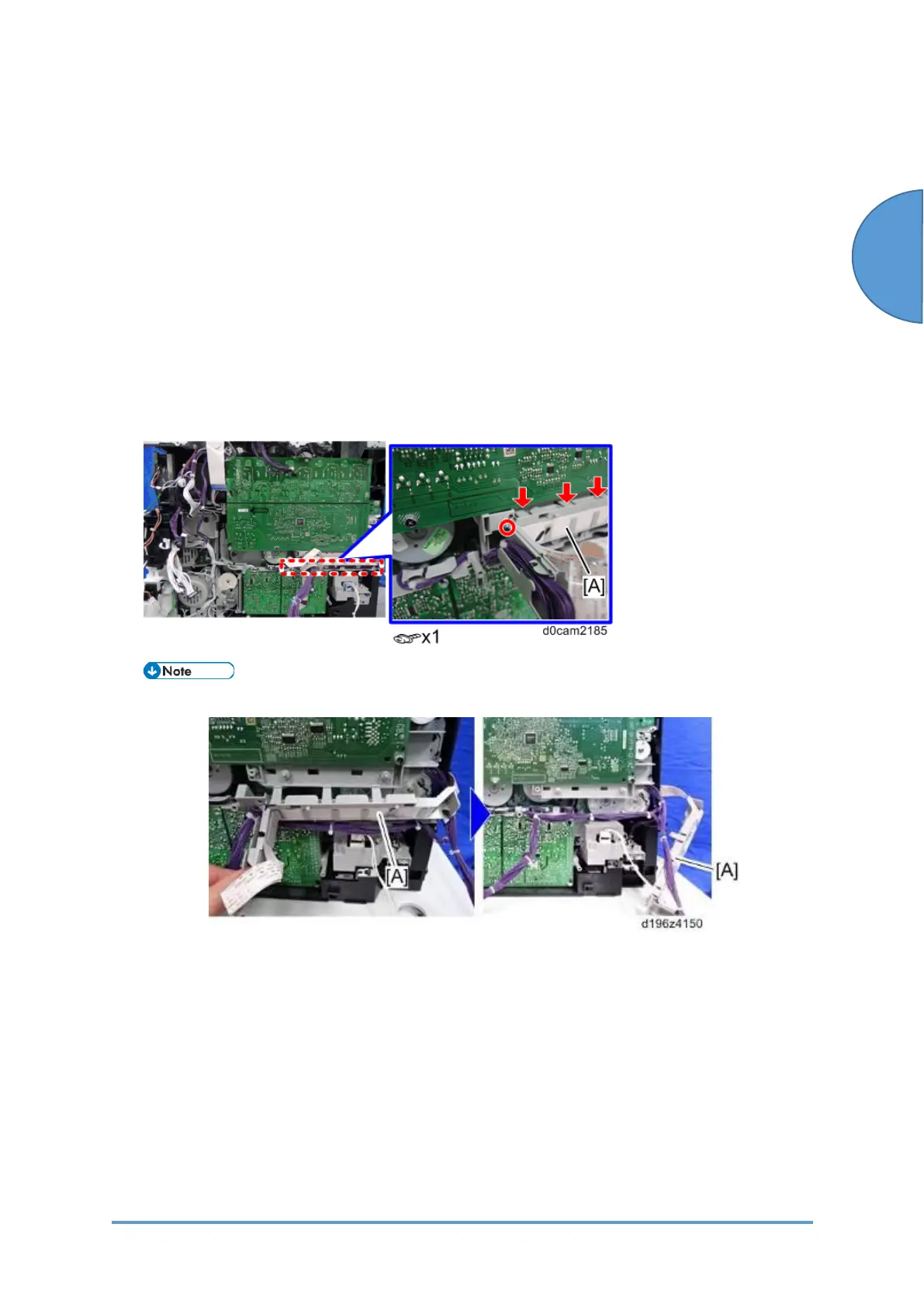

2. Disconnect the harness and remove the harness guide [A]. (hook × 3)
• Release the harness guide [A] as shown below.
To Next Page
