Electrical Components
D0CA/D0C9/D0C8/D0CB 4-234 SM

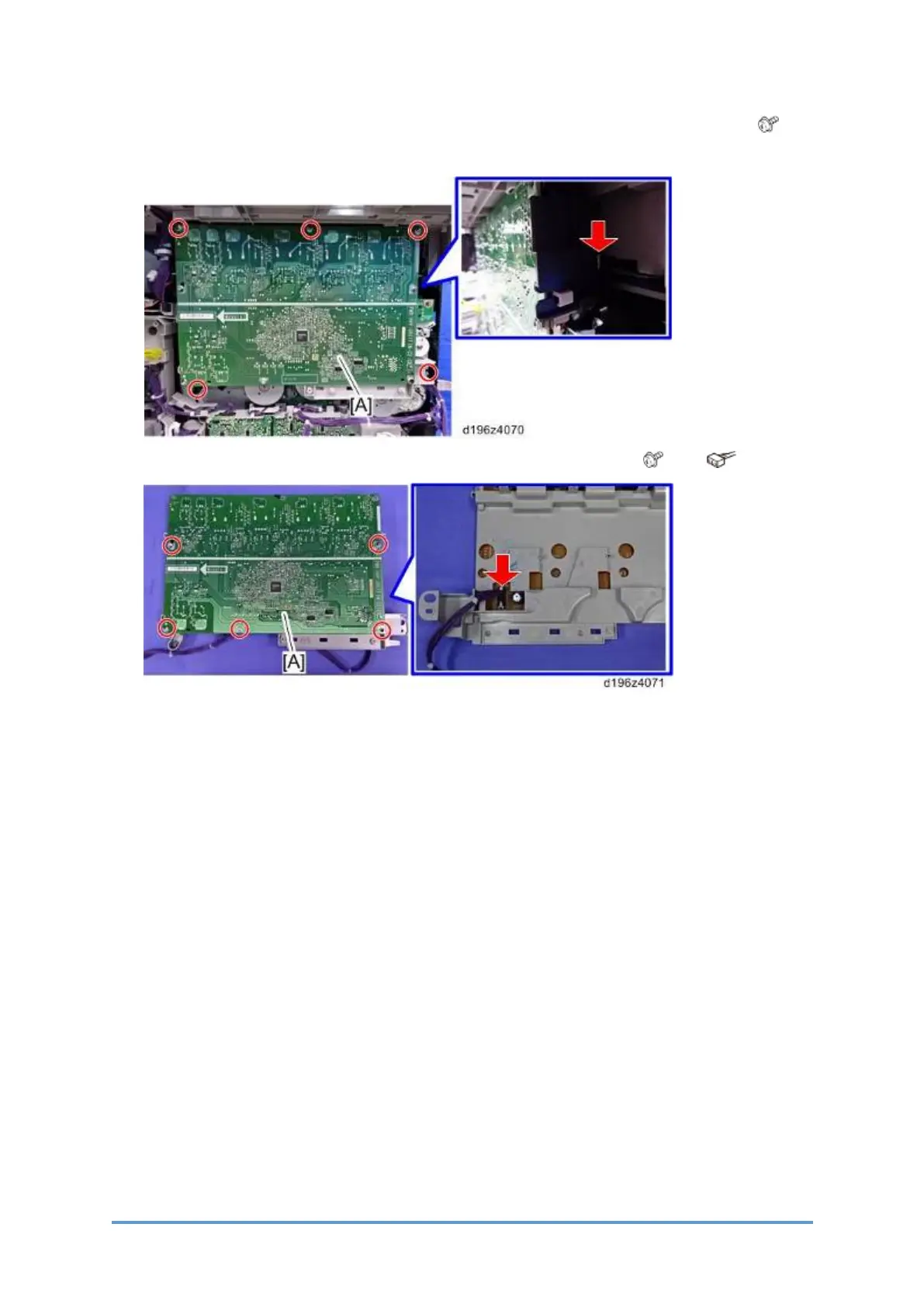

3. Remove the high-voltage power supply (Development) (PCB22) [A] with the bracket. ( ×
5, hook × 1)
4. Remove the high-voltage power supply (Development) (PCB22) [A]. ( × 5, × 1)
