Paper Exit from 1-Bin Tray Unit
D574 4 SM
1.3 PAPER EXIT FROM 1-BIN TRAY UNIT
The paper from the paper exit section is transported to the 1-bin unit.
This uses the same transport path as usual even if duplex is used.

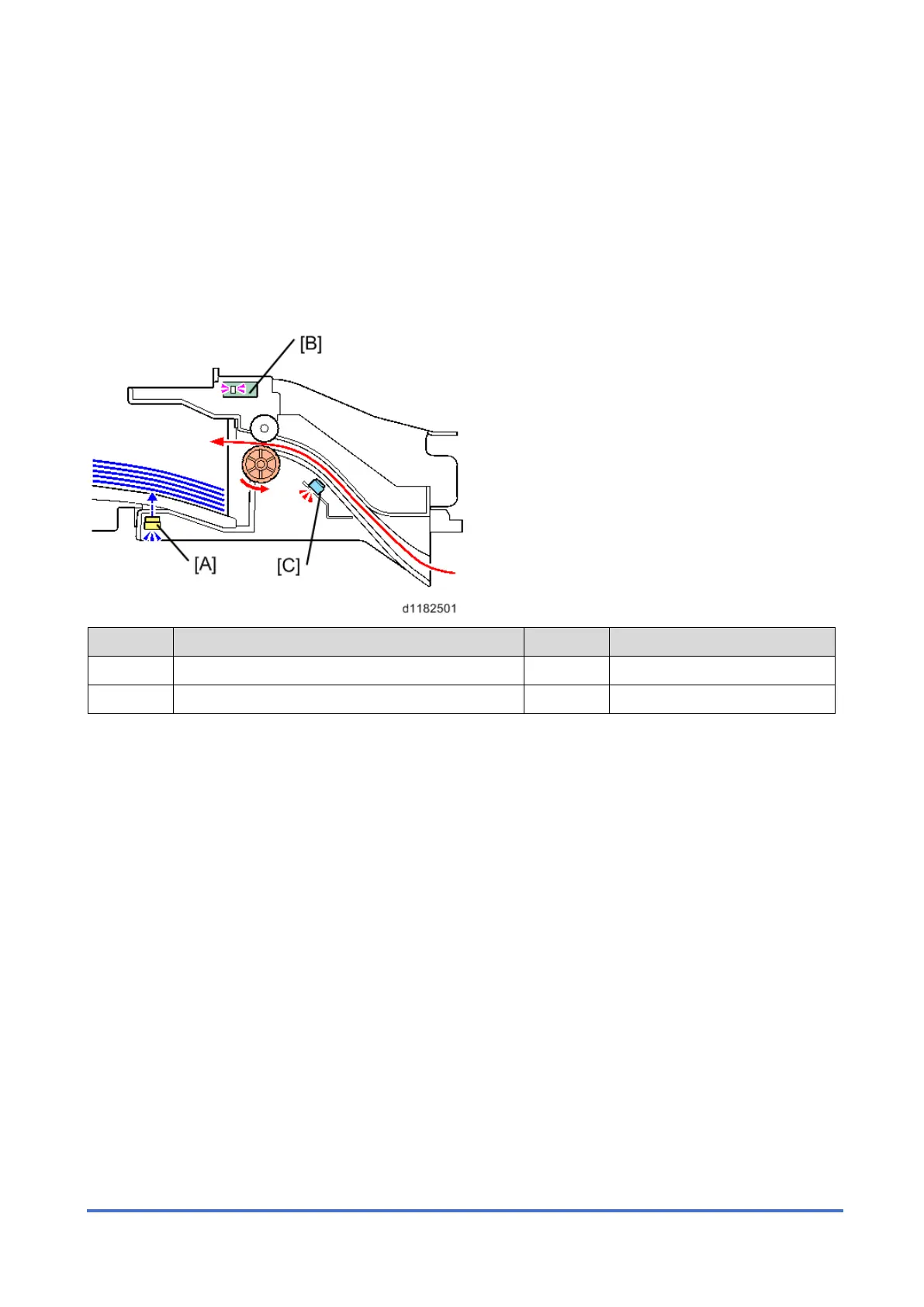

The1-bin tray paper remaining sensor [A] detects the fed out paper, and the LED [B] blinks to inform
users that there is paper on the 1-bin tray after the end of the job.
The 1-bin tray exit sensor [C] detects paper jams in the 1-bin tray.
Callout Item Callout Item
[A] 1-Bin Tray Paper Remaining Sensor [C] 1-Bin Tray Exit Sensor
[B] 1-Bin LED Board - -
