Paper Exit and Inverter
SM 7-107 D0CA/D0C9/D0C8/D0CB

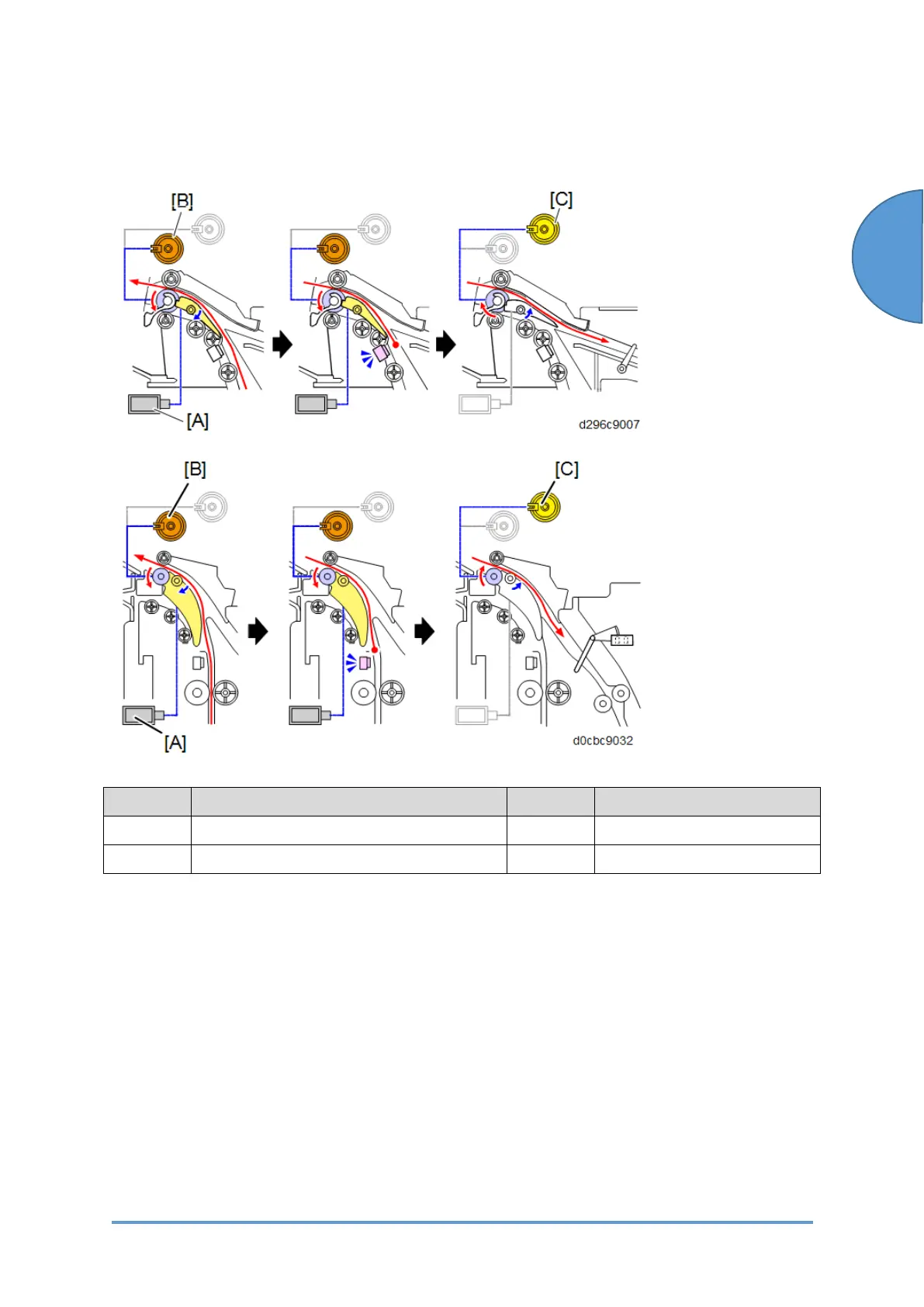

7.17.3 INVERTER OPERATION
Callout Item Callout Item
[A] Junction Gate Solenoid (SOL1) [C] Reverse Clutch (CL2)
[B] Paper Exit Clutch (CL3) - -
The junction gate solenoid (SOL1) [A], paper exit clutch (CL3)[B], and reverse clutch (CL2)[C]
control the exit junction gate and paper exit/reverse roller simultaneously.
The paper exit clutch (CL3) and reverse clutch (CL2) transmit the driving to the paper exit
inverter roller, in opposite directions respectively.
The paper exit/reverse roller rotates in the normal direction when the paper exit clutch (CL3) is
turned ON, to feed the paper to the paper exit path.
When the reverse clutch (CL2) turns ON, the paper exit/reverse roller rotates in the reverse
direction, to feed the paper to the inverter path or 1-bin exit path (when 1-bin tray unit is
installed).
To Next Page
