Fusing
D0CA/D0C9/D0C8/D0CB 7-76 SM
7.11.3 FUSING TEMPERATURE CONTROL
The fusing temperature is controlled by the fusing thermopile (TH1)[C].
The thermostat [B] is a safety switch. The fusing unit must be replaced if the thermostat opens.

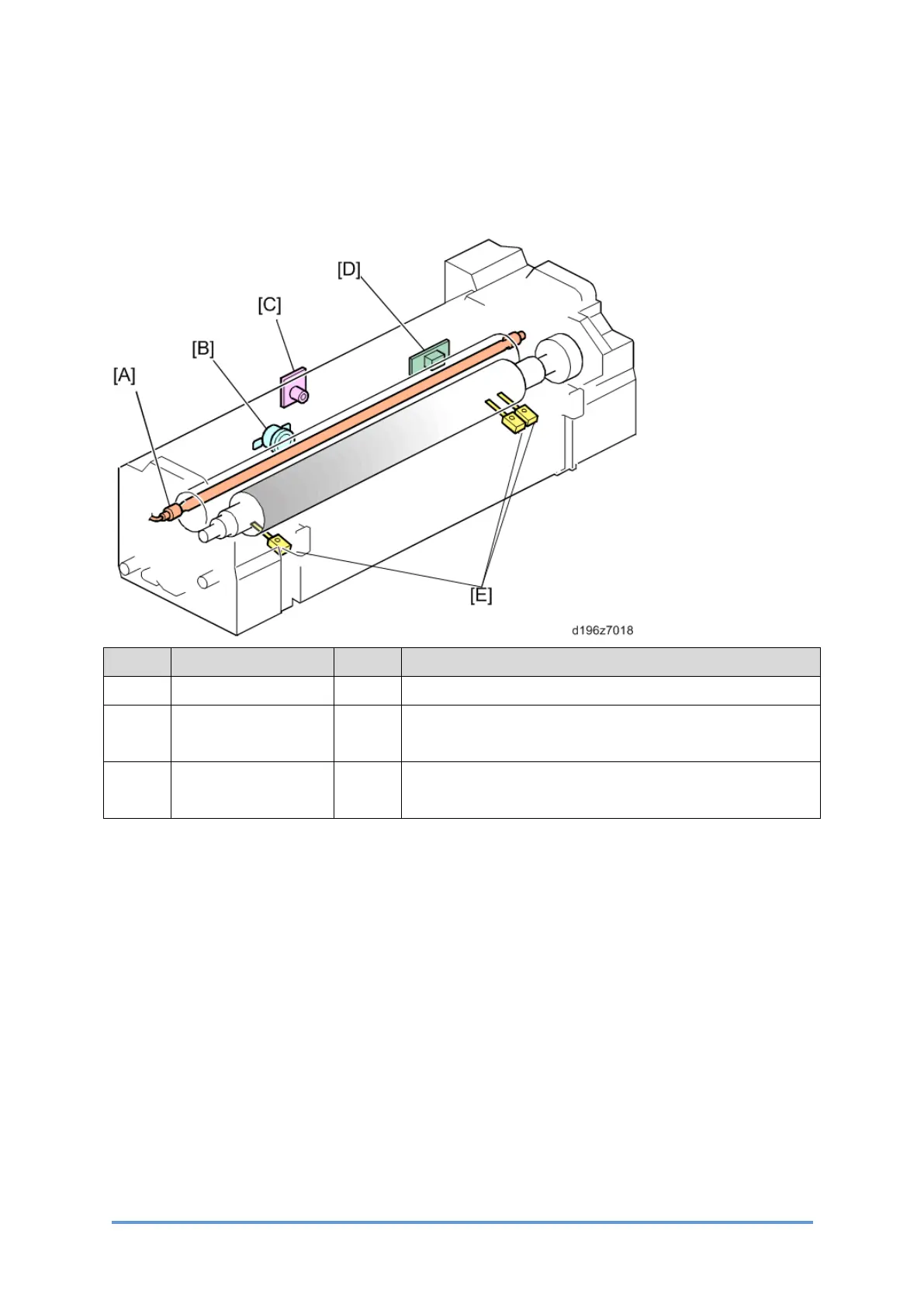

Callout Item Callout Item
[A] Fusing Lamp [D] Fusing Thermistor (Non-contact Sensor) (S10)
[B] Fusing Thermostat [E] Pressure Roller Thermistors (TH2-TH4) (Edge: Front,
Center, and Edge: Rear)
[C] Fusing Thermopile
(TH1)
- -
To Next Page
