Controller Options
SM 2-141 D0CA/D0C9/D0C8/D0CB
3. Plug in and turn ON the main power switch.
4. Check or set the following SP codes with the values shown below.
SP No. Title Setting
SP5-836-001 Capture Function (0:Off 1:On) "1"
SP5-836-002 Panel Setting "0"
5. Make sure that the machine can recognize the option (see Check All Connections at the
end of this section).
The customer should keep the removed slot cover.

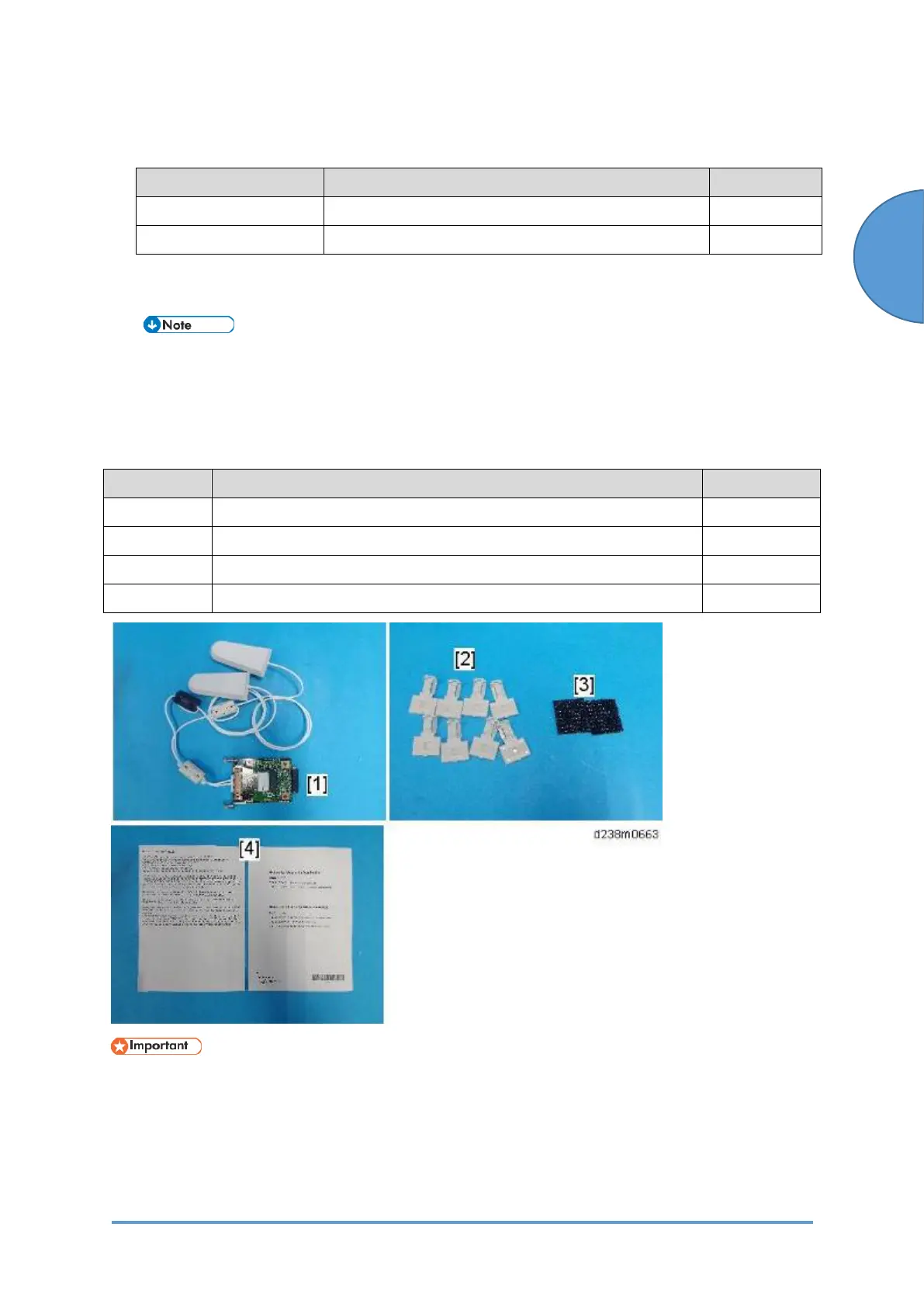

2.20.4 IEEE 802.11A/G/N INTERFACE UNIT TYPE M19 (D3BR-01)
Component Check
No. Description Q’ty
1 IEEE802.11a/g/n Unit 1
2 Clamps 2
3 Look and loop fasteners 8
4 Notes for Users 2
• Since disassembly/alteration of a wireless LAN board is illegal, during service
replacements, replace the whole PCB assembly.
• Be sure to give the provided leaflet to the customer.
