Waste Toner Collection
D0CA/D0C9/D0C8/D0CB 7-60 SM
7.8.3 WASTE TONER FULL DETECTION
When the waste toner moves the rubber actuator [B] to the highest position, the waste toner full
sensor (S36) [A] detects that the waste toner bottle is near-full. The machine does not stop at
this time.
When the quantity of waste toner calculated by the machine reaches 25 g or 3,000 sheets in
standard mode, whichever comes first after near-full was detected, the machine detects that the
waste toner bottle is full, and stops itself automatically.

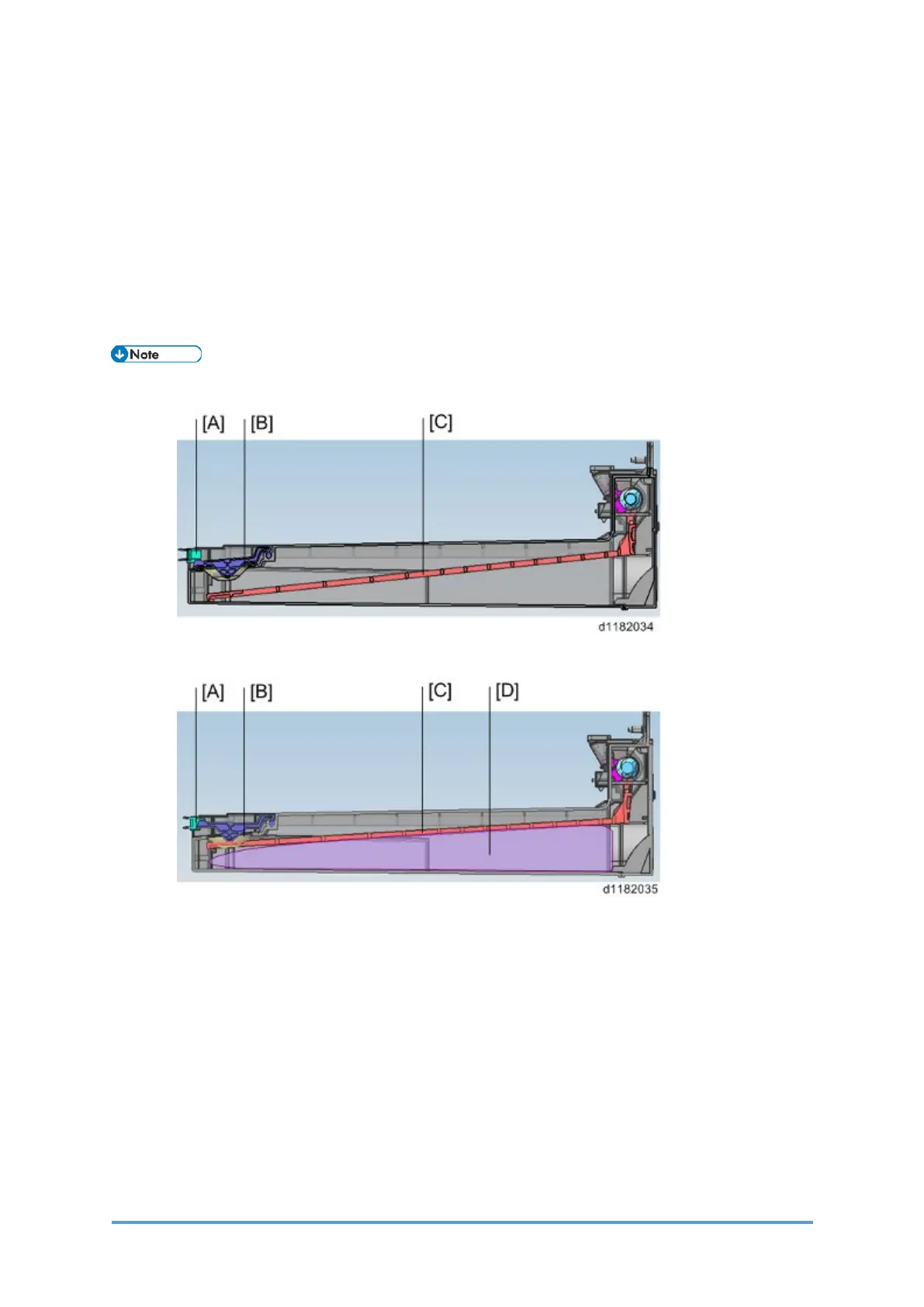

• When the waste toner bottle is empty:
• When the waste toner bottle is full:
• [A] Waste Toner Full Sensor (S36)
• [B] Rubber Actuator
• [C] Waste toner agitator
• [D] Waste Toner
