Electrical Components
SM 4-229 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
• For 200V:
Common Procedures

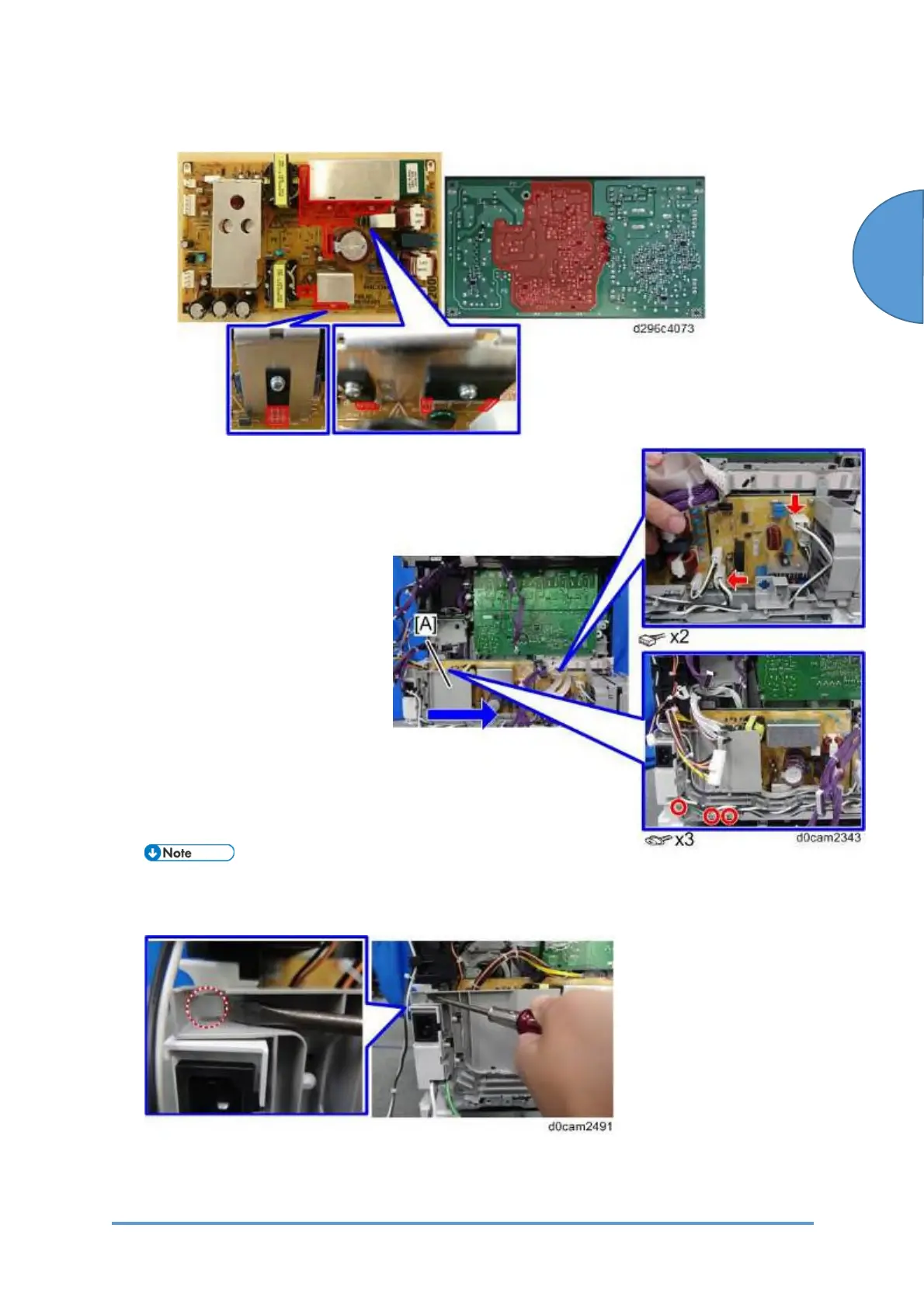

1. Remove the following parts.
• Rear Cover
• Upper Left Cover
• Left Cover
• Right Rear Cover
• Controller Box
• PSU Exhaust Fan (FAN4)
2. Disconnect the harness and
remove the harness guide [A].
There is a hook in the red dotted area in the photo. Use a straight slot screwdriver to
remove the harness guide.
To Next Page
