Installation Requirements
D0CA/D0C9/D0C8/D0CB 2-4 SM
When the operation panel is upright: 825 x 561 mm
• When the operation panel is face up: 825 x 605 mm

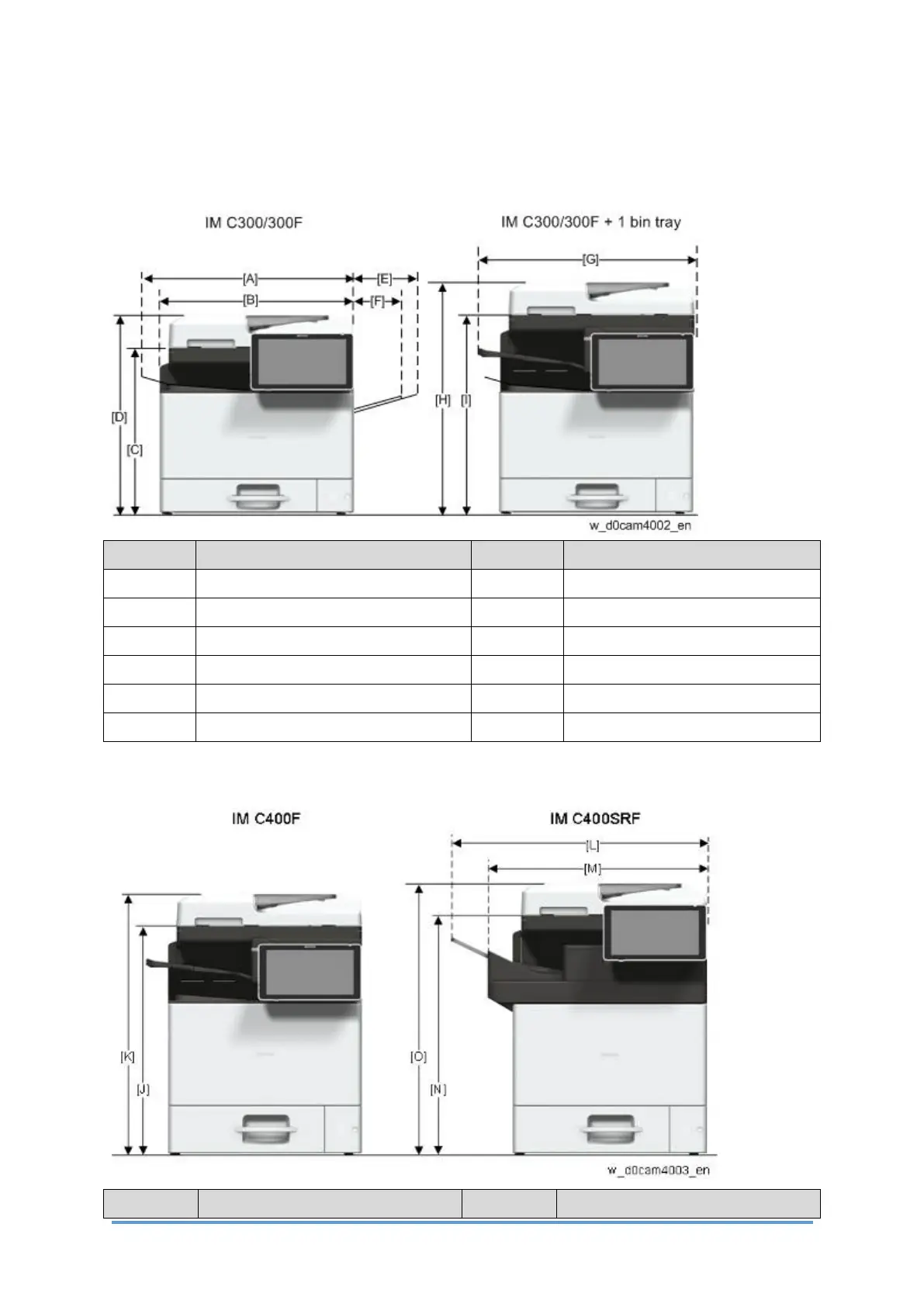

Callout mm (inch) Callout mm (inch)
[A] 546.2 mm (approx. 21.5") [G] 554 mm (approx. 21.8")
[B] 498 mm (approx. 19.6") [H] 595 mm (approx. 23.4")
[C] 425 mm (approx. 16.7") [I] 510 mm (approx. 20.1")
[D] 510 mm (approx. 20.1") - -
[E] 280 mm (approx. 11.0") - -
[F] 210 mm (approx. 8.3") - -
Callout mm (inch) Callout mm (inch)
