Toner Supply Section
SM 7-57 D0CA/D0C9/D0C8/D0CB

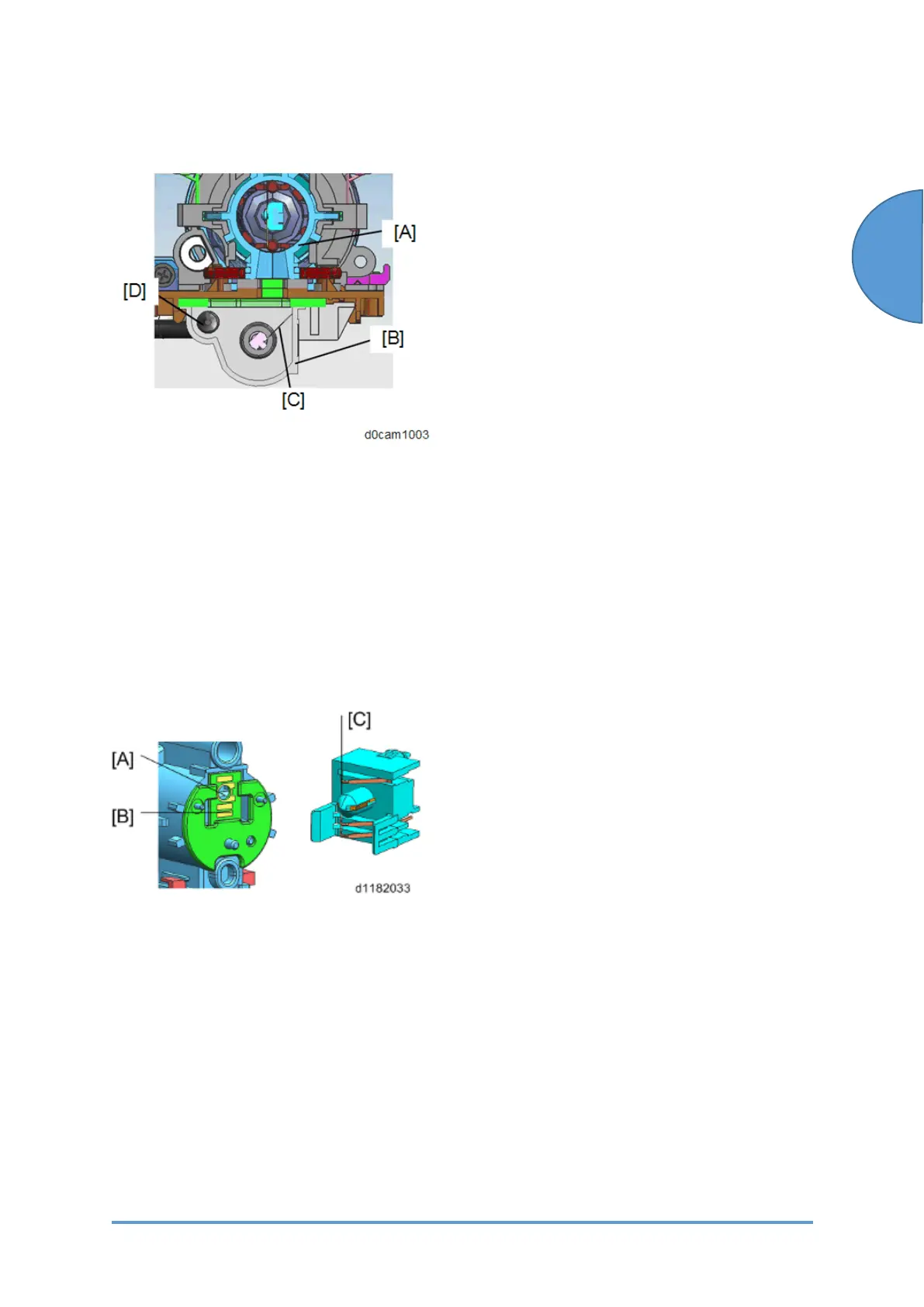

[C] Shutter
[D] Sub-hopper
[A] Toner Bottle Cap
[B] Sub-hopper
[C] Agitator
[D] Toner Transport Path
7.7.6 ID CHIP (PCB3-PCB6)
Contact type ID chip (PCB3-PCB6) [B] is correctly mounted by means of the tapered boss for
chip positioning [C] and the positioning hole [A]. The information on the toner bottle can be read
when the bottle is properly installed.
[A] Positioning Hole
[B] ID Chip (PCB3-PCB6)
[C] Tapered Boss (for Chip Positioning)
