Ricoh IM C300

ADF
D0CA/D0C9/D0C8/D0CB 4-50 SM
4.6 ADF
4.6.1 ADF UNIT

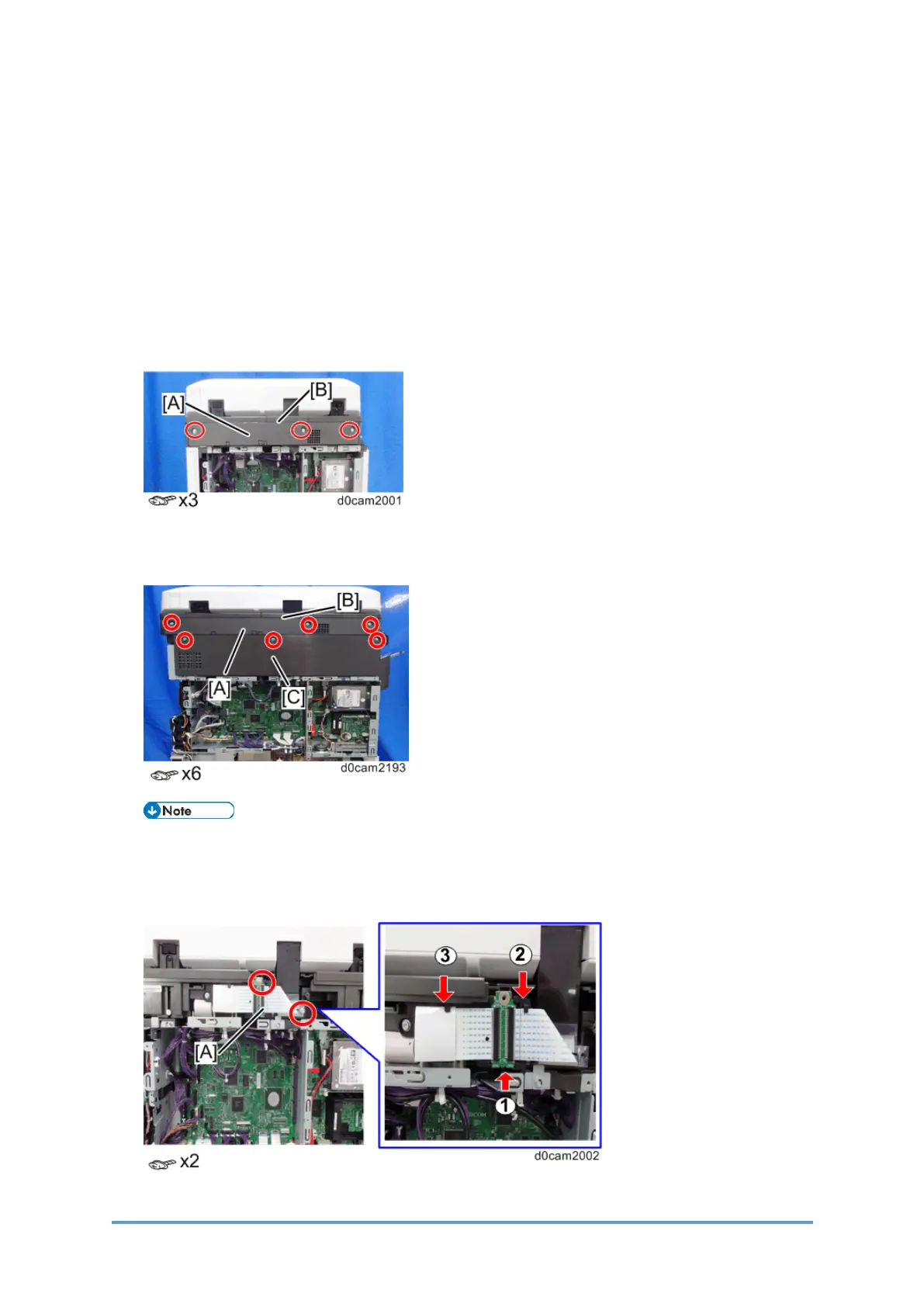

1. Remove the rear cover. (Rear Cover)
2. Remove the scanner rear cover [A] and scanner rear small cover [B].
IM C300 series/IM C400F
IM C400SRF
Remove the rear upper cover [C] for IM C400SRF.
3. Release the two screws and three tabs for attaching the relay board (PCB12) [A] and FFC
to release the FFC.
