Electrical Components
D0CA/D0C9/D0C8/D0CB 4-222 SM
4.19.5 CONTROLLER BOX
• If the optional counter interface unit is installed, remove the optional counter interface
unit before removing the controller box.
1. Remove the following parts.
• Rear Cover
• Upper Left Cover
• Left Cover
• Right Rear Cover

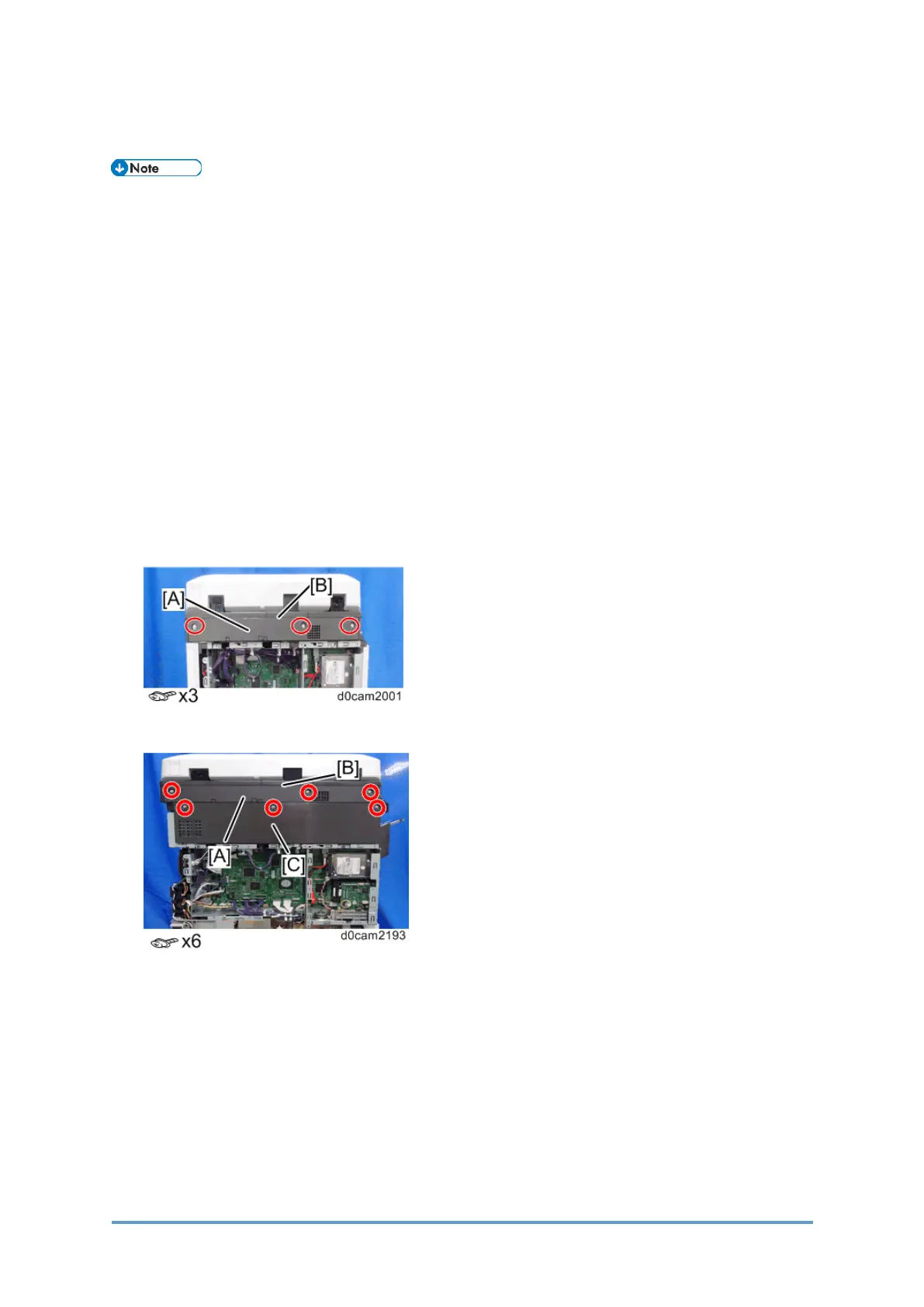

2. Remove the scanner rear cover [A] and scanner rear small cover [B].(This procedure is for
IM C300 series/IM C400F)
3. Remove the scanner rear cover [A],scanner rear small cover [B] and rear upper cover
[C].(This procedure is for IM C400SRF)
IM C300 series/IM C400F
IM C400SRF
