Replacement
&
Adjustment

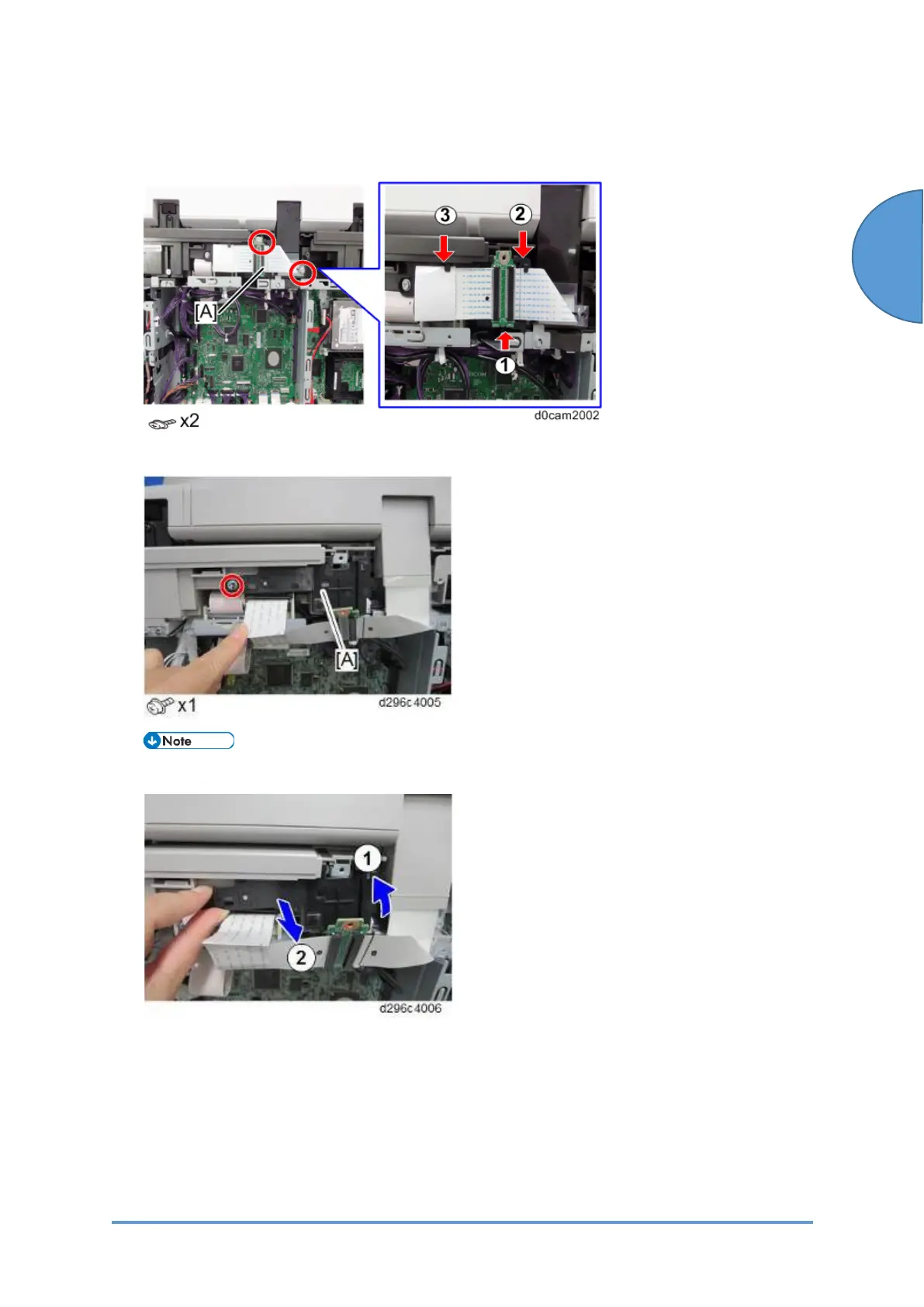

4. Release two screws and three tabs for attaching the relay board (PCB12) [A] and FFC, to
release the FFC.
5. Remove the FFC fixing bracket [A] on the back side of the FFC.
Remove the FFC fixing bracket while turning it counterclockwise and releasing the tab.
