Waste Toner Collection
SM 7-59 D0CA/D0C9/D0C8/D0CB
s
7.8.2 WASTE TONER COLLECTION MECHANISM

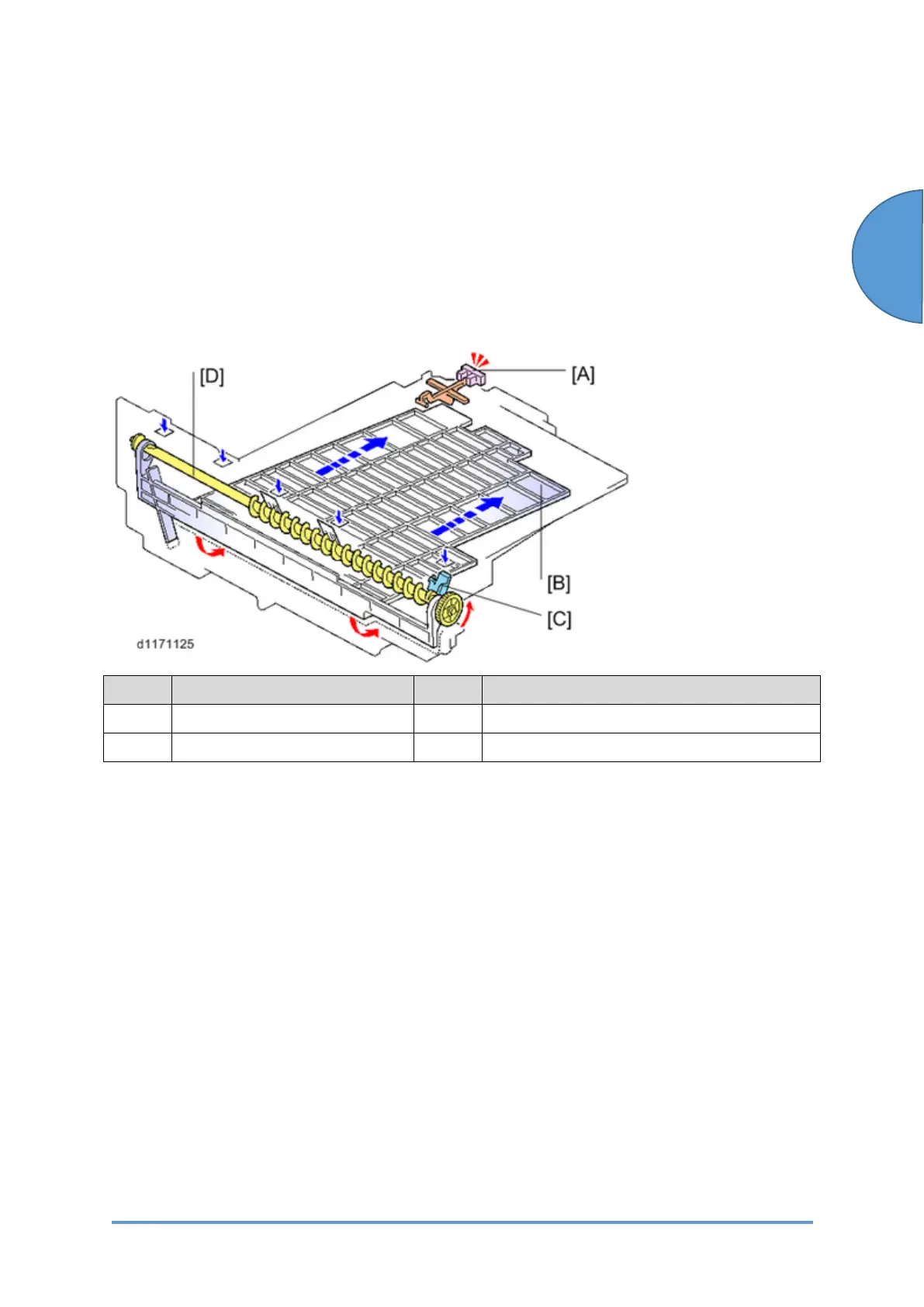

The waste toner agitator [B] carries waste toner piled up at the front of the waste toner bottle to
the rear. The agitator [C] moves together with the waste toner bottle transport coil [D].
When the waste toner full sensor (S36) [A] detects a “waste toner near full”, the machine
displays an alert message on the operation panel, which prompts users to replace the waste
toner bottle.
Callout Item Callout Item
[A] Waste Toner Full Sensor (S36) [C] Waste Toner Agitator (for ITB Cleaning Unit)
[B] Waste Toner Agitator [D] Waste Toner Bottle Transport Coil
