Scanner
SM 4-79 D0CA/D0C9/D0C8/D0CB
&
Adjustment

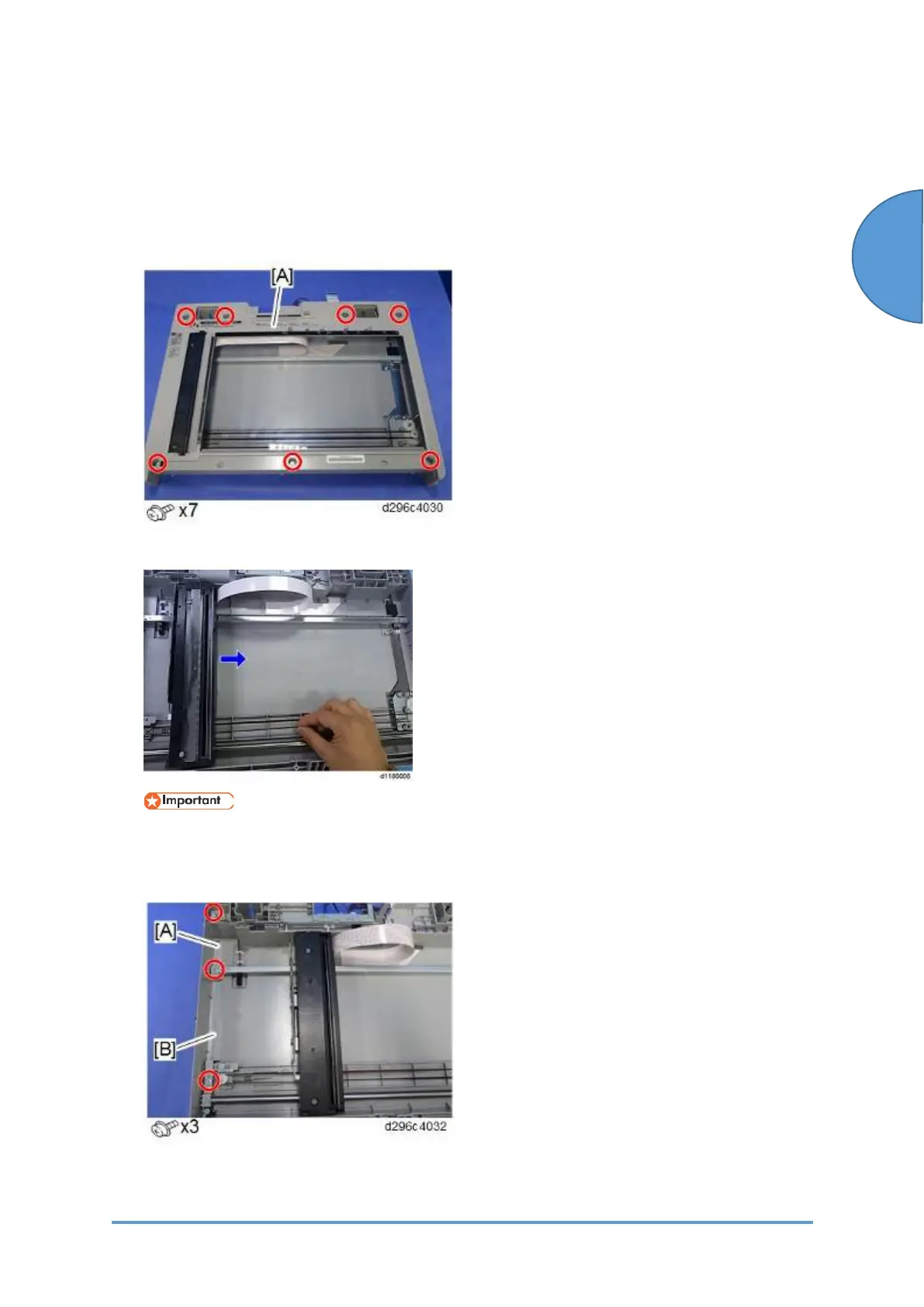

4.7.5 SCANNER HP SENSOR (S20)
1. Remove the ADF unit. (ADF Unit)
2. Remove the scanner front cover. (Scanner Front Cover)
3. Remove the scanner upper cover [A].
4. Move the scanner carriage to the right.
• To move the carriage, hold the carriage belt and move it carefully.
• Never hold the carriage itself.
5. Remove the brackets [A][B].
To Next Page
