Electrical Components
D0CA/D0C9/D0C8/D0CB 4-240 SM
IM C400SRF

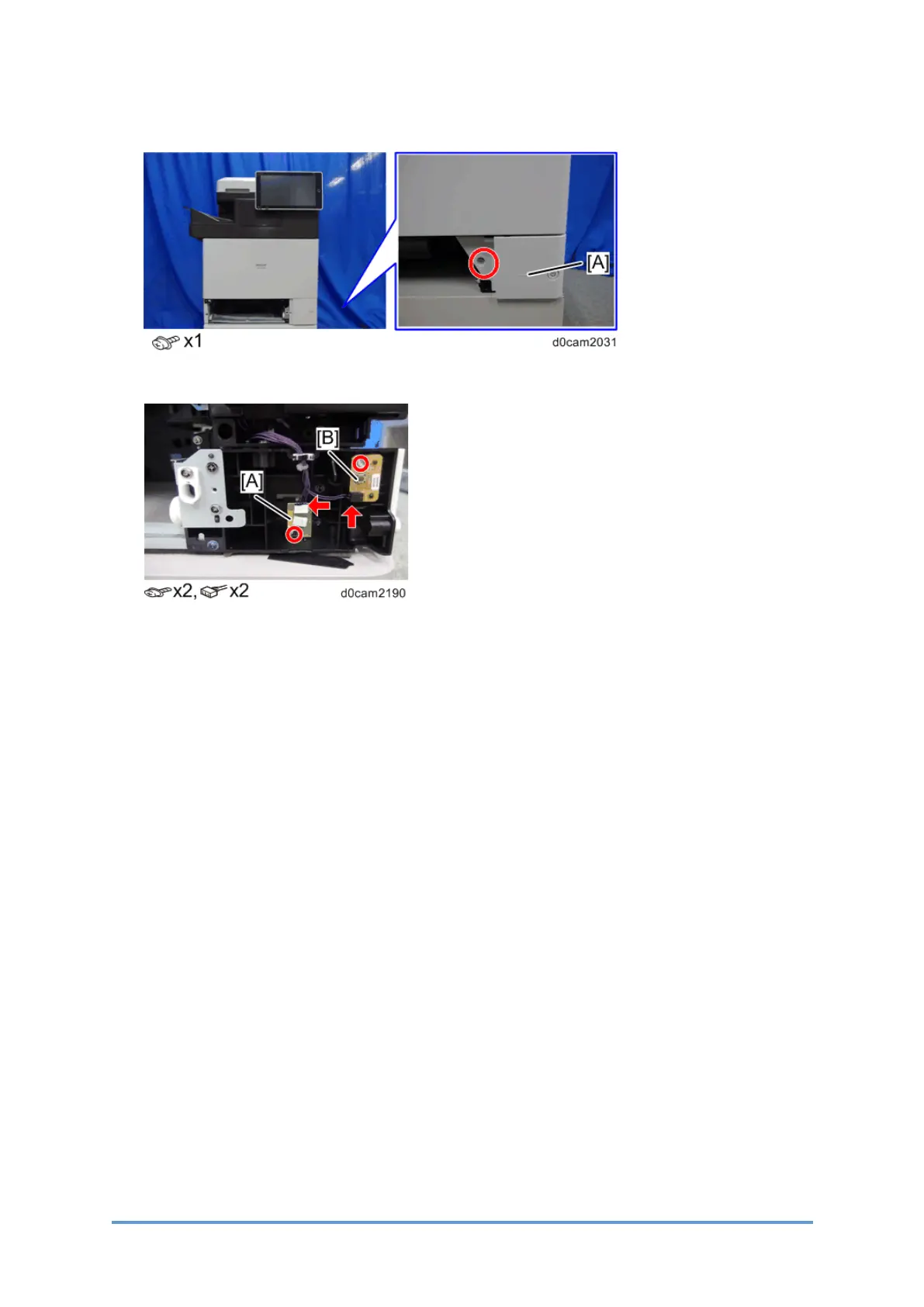

3. Remove the temperature/humidity sensor (S18) [A] and the main power switch (SW1) [B].
4.19.14 IMAGING TEMPERATURE SENSOR (TH5)
1. Remove the following parts.
• Right Rear Cover
• Rear Cover
• Upper Left Cover
• Left Cover
• Controller Box
• PSU (AC) (PCB17), PSU (DC) (PCB16)
• High-Voltage Power Supply (Development) (PCB22)
• Toner Bottle Sensor Board (PCB7)
• Toner Supply Motors (M1-M4)
• Toner Supply Unit (Toner Transport Section)
