Paper Feed and Registration (IM C400 Series)
D0CA/D0C9/D0C8/D0CB 7-88 SM
7.13.4 PAPER END DETECTION

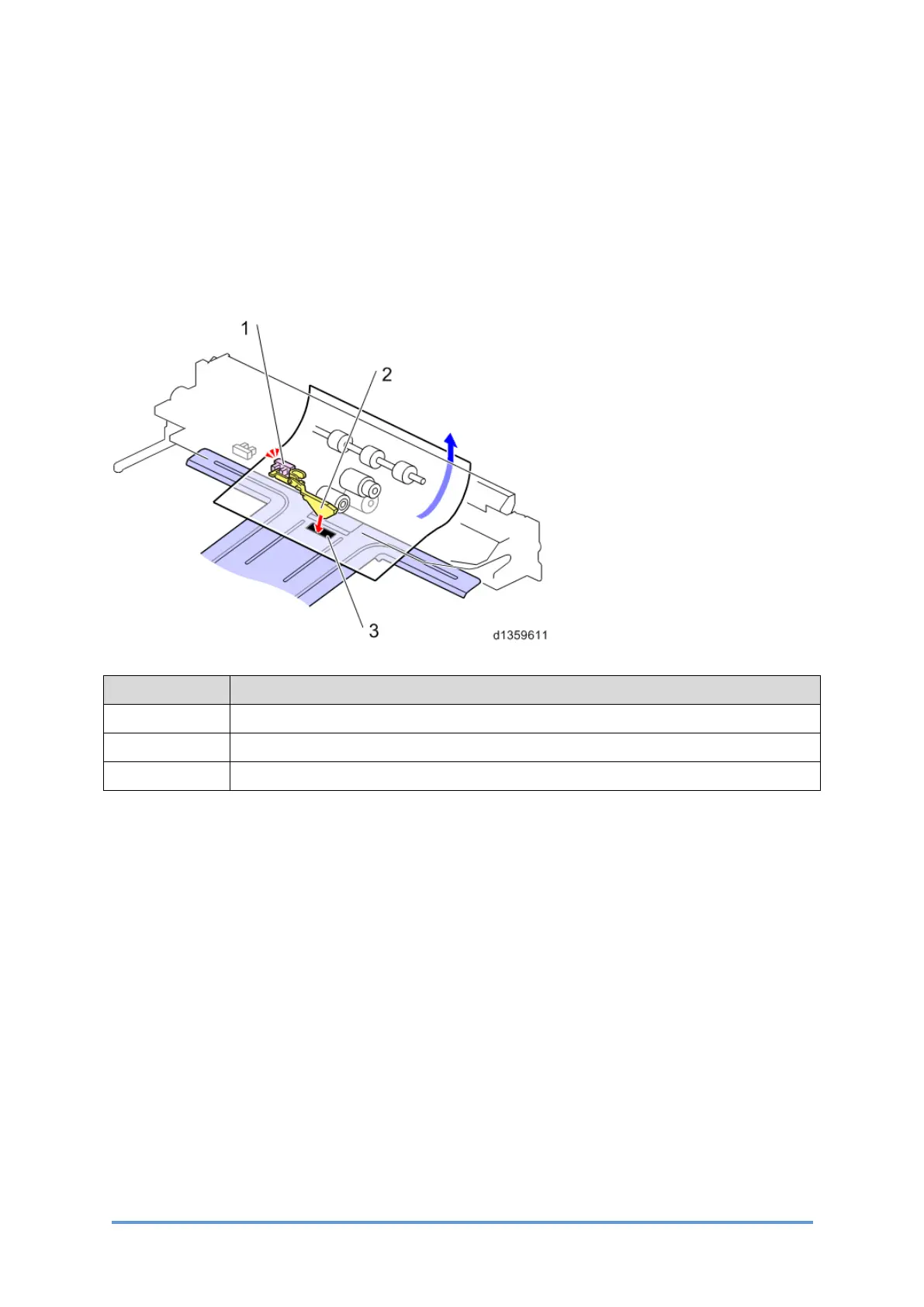

When there is no more paper in the paper feed tray, the leading edge of the paper end feeler [2]
falls into a notch [3] in the base plate, and the tray paper end sensor (main unit) (S30) [1] at the
rear edge of the paper end feeler switches ON.
Callout Item
1 Tray Paper End Sensor (Main Unit) (S30)
2 Paper End Feeler
3 Notch
