Paper Feed and Registration (IM C400 Series)
SM 7-85 D0CA/D0C9/D0C8/D0CB
7.13.2 PAPER TRANSPORT

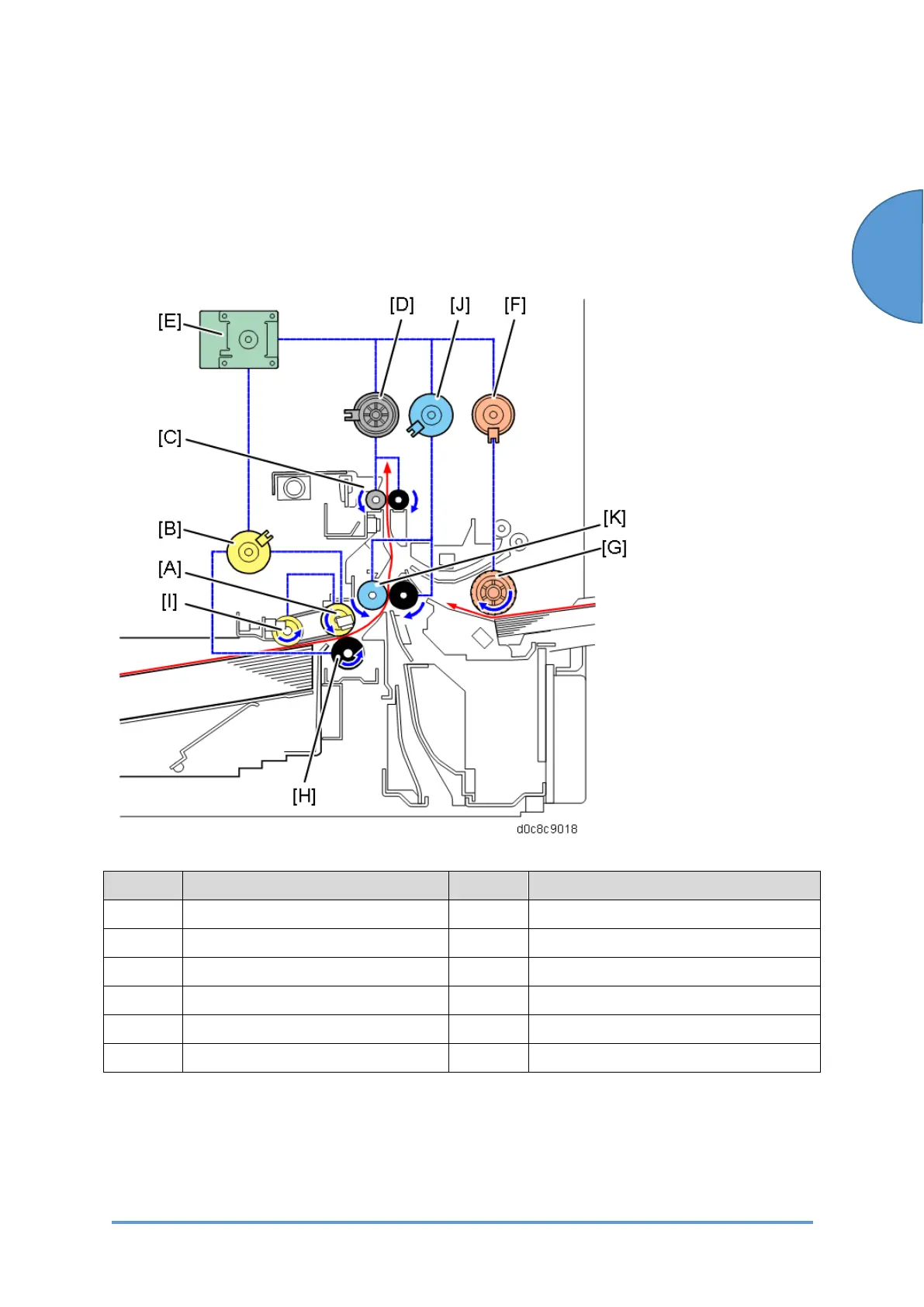

The drive from the paper transport motor (M12) is transmitted to each clutch through gears. The
paper transport motor (M12) controls paper feed, duplex, registration, waste toner transport coil
and bypass tray lift.
Callout Item Callout Item
[A] Paper Feed Roller [G] Bypass Feed Roller
[B] Paper Feed Clutch (CL9) [H] Friction Roller
[C] Registration Roller [I] Pick-up Roller
[D] Registration Clutch (CL8) [J] Vertical Transport Clutch (CL10)
[E] Paper Transport Motor (M12) [K] Vertical Transport Roller
[F] Bypass Feed Clutch (CL7) - -
