4.16.7 BYPASS TRAY LIFT CLUTCH (CL1)
1. Remove the duplex unit.(Duplex Unit)
2. Remove the bypass feed unit. (Bypass Feed Unit)

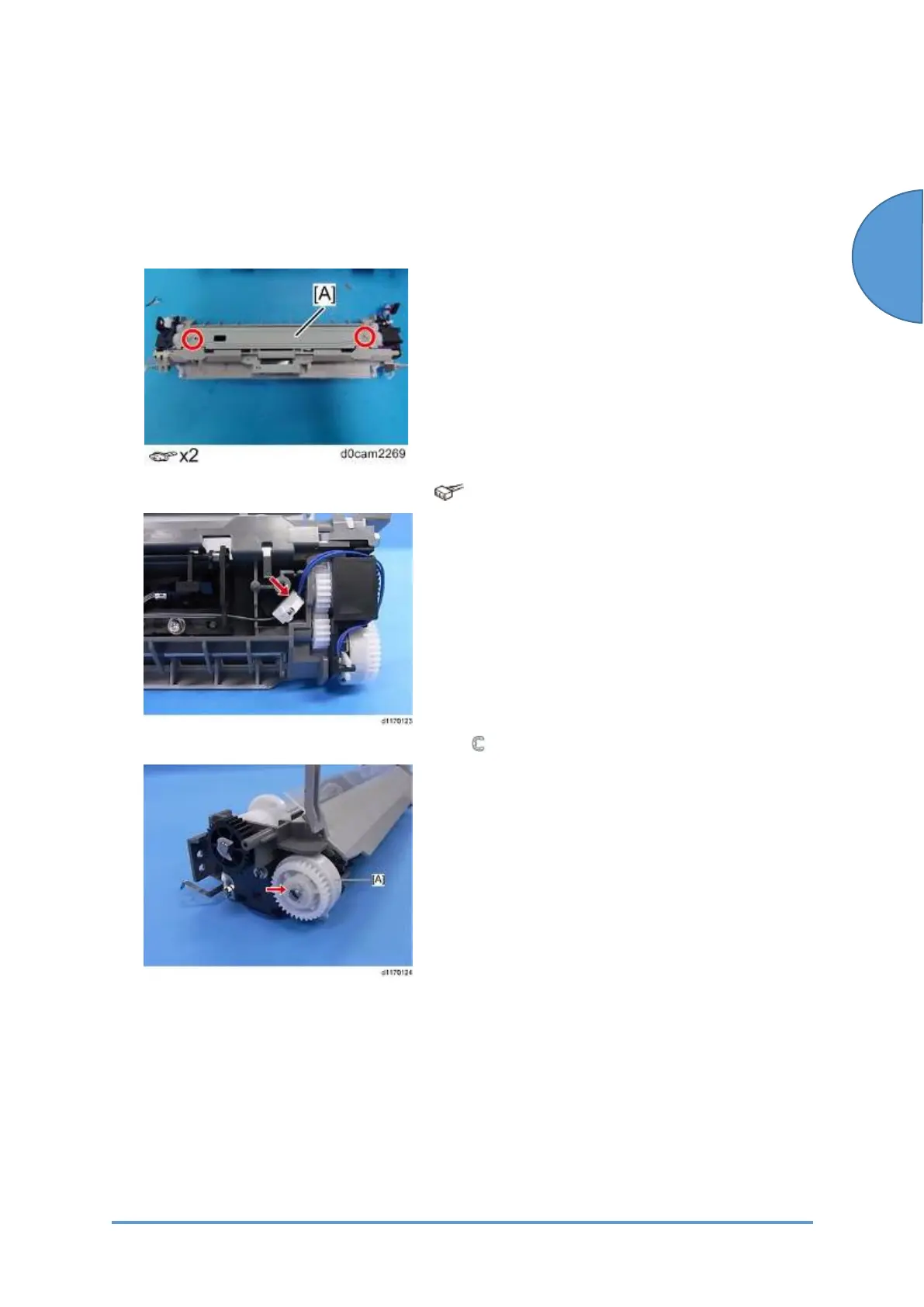

3. Remove the bracket [A].
4. Disconnect the connector of the clutch. ( × 1)
5. Remove the bypass tray lift clutch (CL1) [A]. ( × 1)
