7.8 WASTE TONER COLLECTION
7.8.1 WASTE TONER TRANSPORT MECHANISM

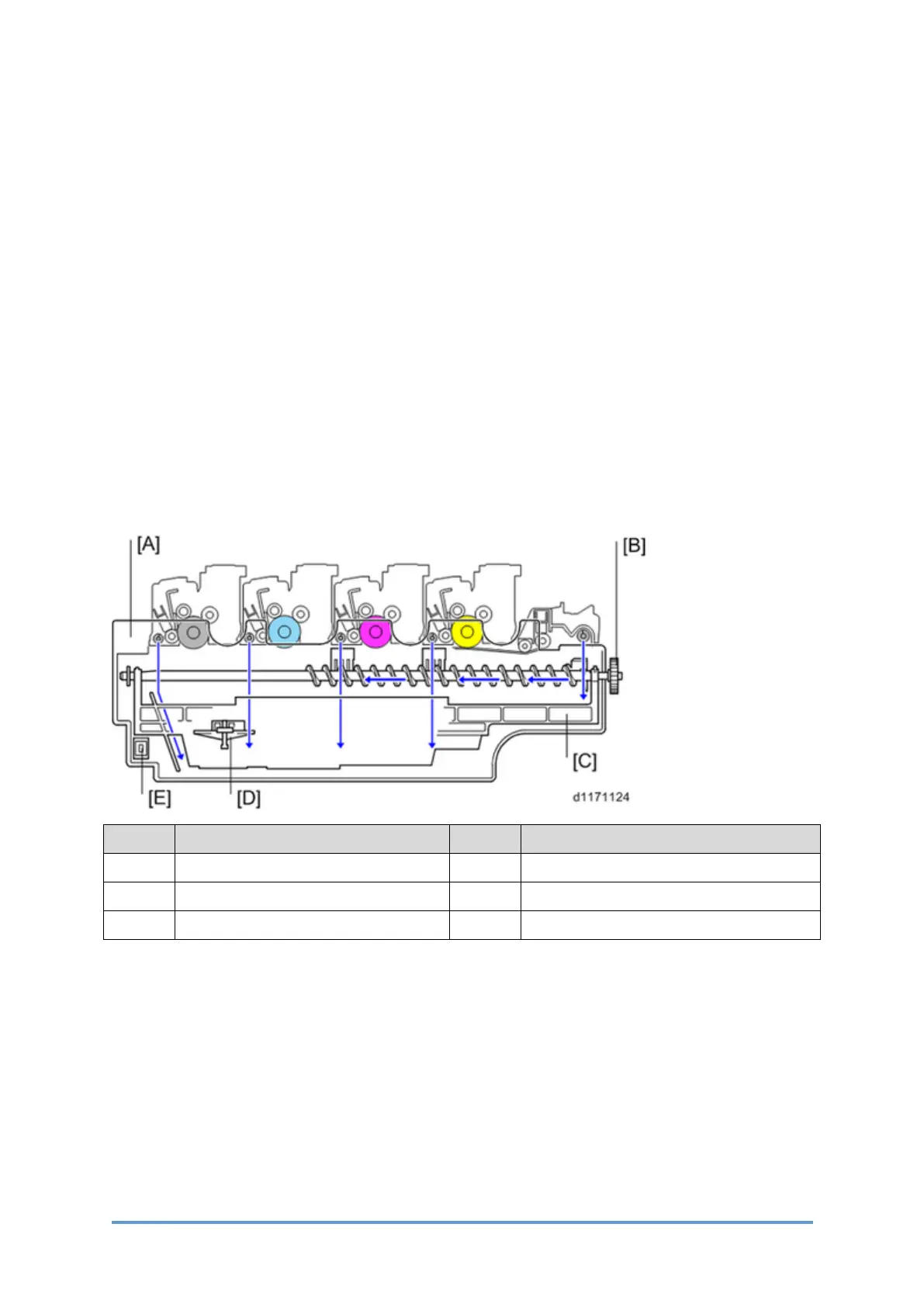

The waste toner collected from the ITB cleaning unit is transported towards the front of the
machine and it goes into the waste toner bottle [A].
The waste toner of yellow and magenta coming from the PCDU (Y/M) and the waste toner from
the ITB cleaning unit is collected at the center of the waste toner bottle by the waste toner bottle
transport coil [B]. The black and cyan waste toner comes from the PCDU (K/C) to the waste
toner bottle directly.
The waste toner agitator [C] carries waste toner piled up at the front of the waste toner bottle to
the rear.
The waste toner bottle set sensor (S26) [E] detects the presence of the waste toner bottle, and
there is also a waste toner full sensor (S36) [D].
Callout Item Callout Item
[A] Waste Ton er Bottle [D] Waste Toner Full Sensor (S36)
[B] Waste Ton er Bottle Transport Coil [E] Waste Toner Bottle Set Sensor (S26)
[C] Waste Toner Agitator - -
