Drive
SM 4-139 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.13.5 DEVELOPMENT CLUTCH (K) (CL5)
1. Remove the following parts.
• Right Rear Cover
• Rear Cover
• Upper Left Cover
• Left Cover
• Controller Box
• PSU Exhaust Fan (FAN4)
• PSU (AC) (PCB17), PSU (DC) (PCB16)
• High-Voltage Power Supply (Development) (PCB22)
• High-Voltage Power Supply (Transfer) (PCB23)
• Drum Motor (M11)

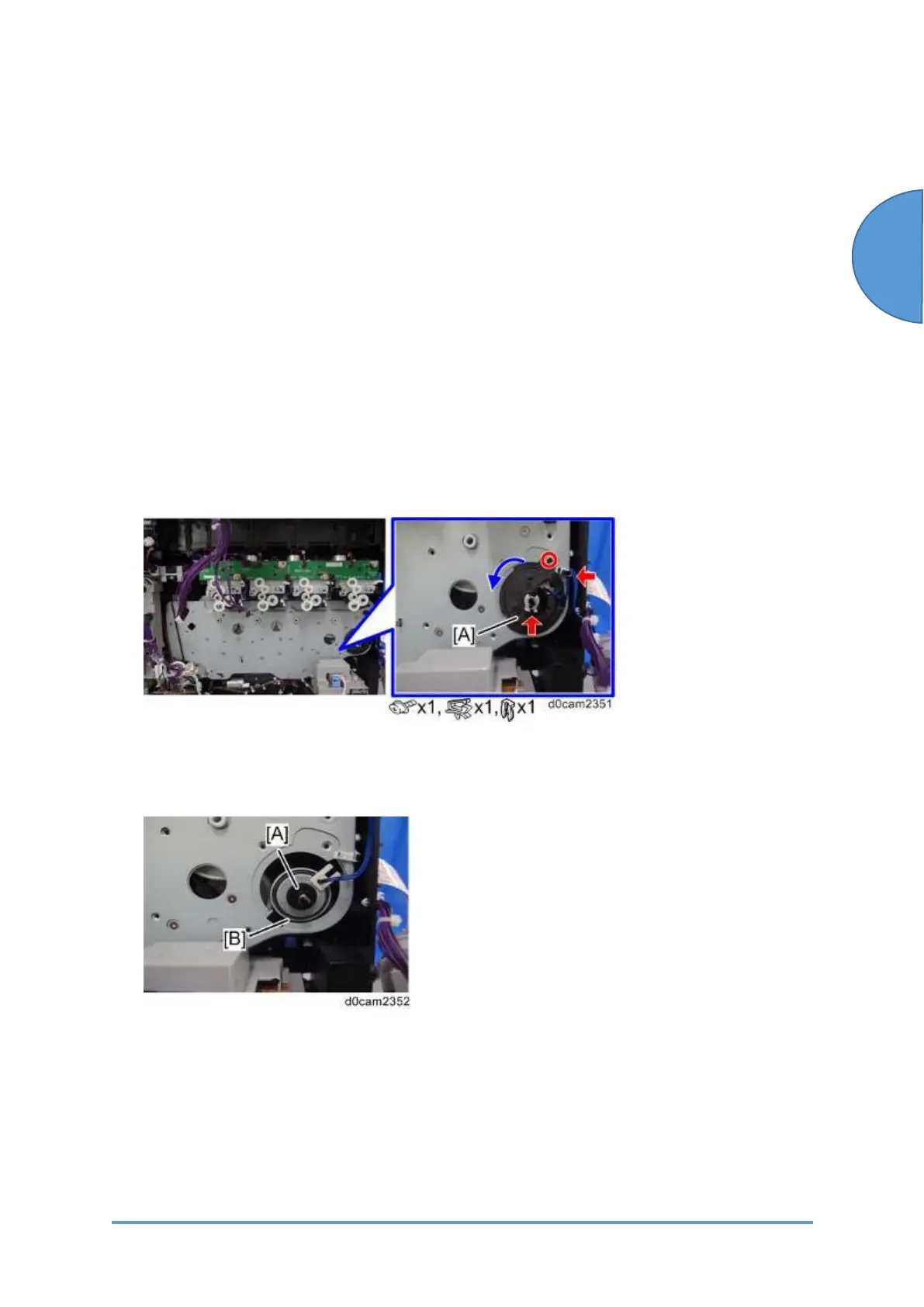

2. Remove the development clutch cover [A] by rotating it counterclockwise.
3. Remove the bearing [A].
4. Remove the development clutch (K) (CL5) [B].
IM C300 series
