Dehumidification Heater (PFU)
SM 2-123 D0CA/D0C9/D0C8/D0CB
2.19 DEHUMIDIFICATION HEATER (PFU)
2.19.1 ACCESSORY CHECK
There is no need to order individual kits. Part Number "D3GQ0400" for NA/TWN,
"D3GQ0401" for EU/AA/KOR/CHN contains all required accessories to install the heater for
the paper feed tray.
After ordering "D3GQ0400", check the quantity and condition of the accessories against the
following list.

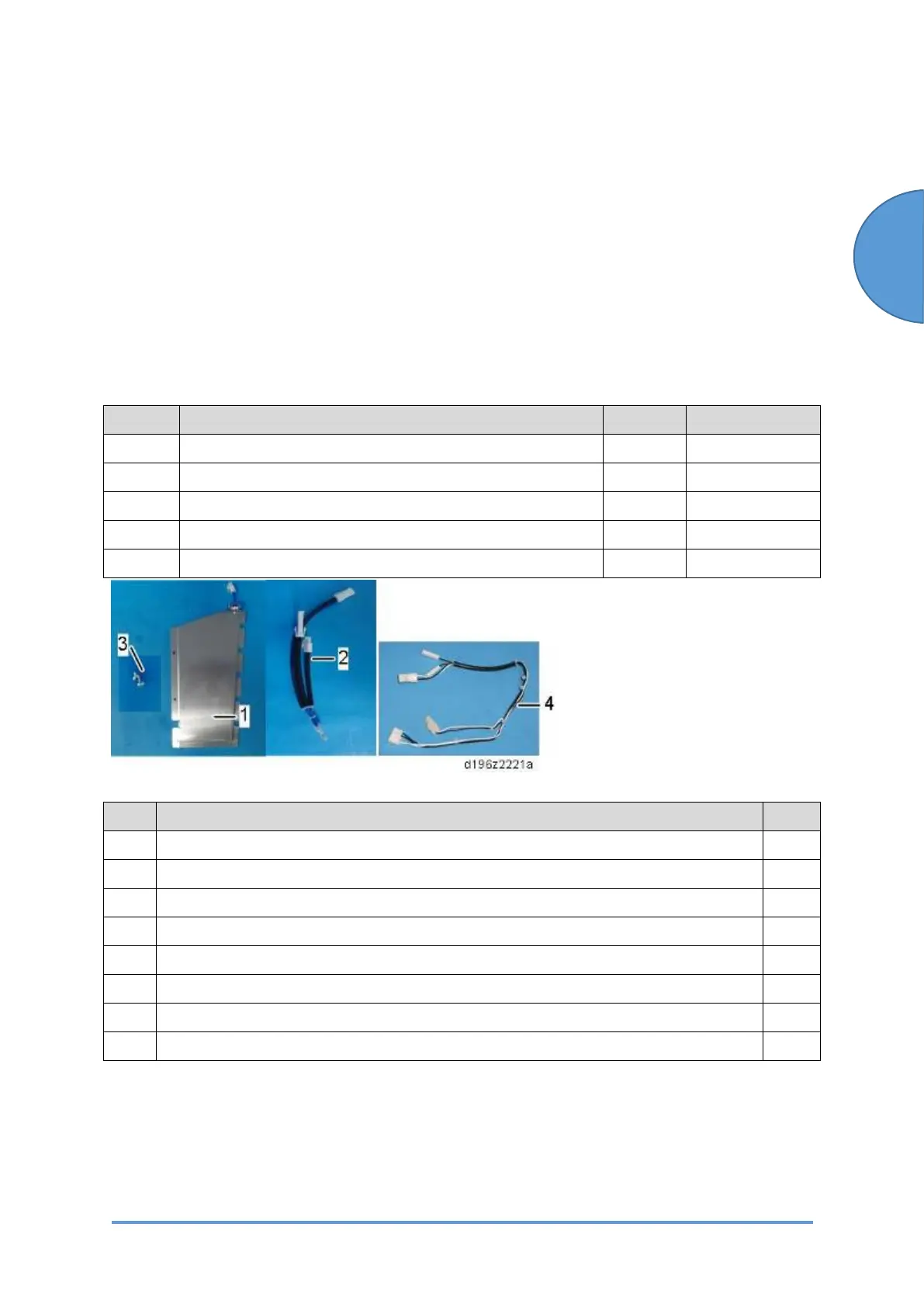

For Installing the Heater:
No. Description Q’ty Remark
1 Dehumidification Heater 1
2 Harness with the isolation cap 1
3 M4 × 10: Screw 2
4 Junction harness 1
- Clamp 5
For Joining the Mainframe and Another Paper Feed Unit:
No. Description Q’ty
5 Joint bracket (Front left) 1
6 Joint bracket (Front right) 1
7 Joint bracket (Front center) (only for the optional paper feed unit) 1
8 Joint bracket (Rear) 4
9 Joint bracket (Frame) (only for optional paper feed unit) 1
10 M3 x 6: Screw 11
11 M3 x 12: Screw 1
12 Tapping screw 3 x 8 3
